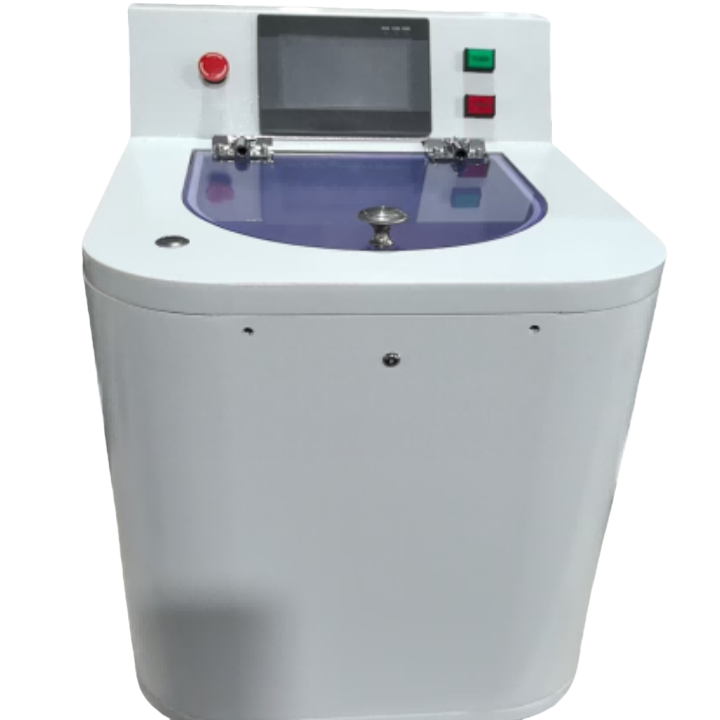

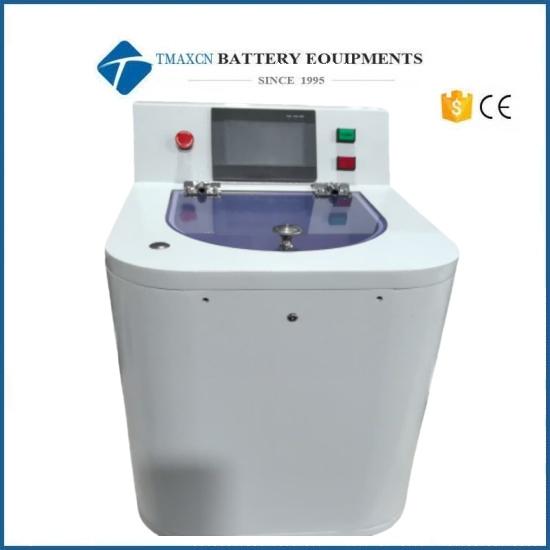

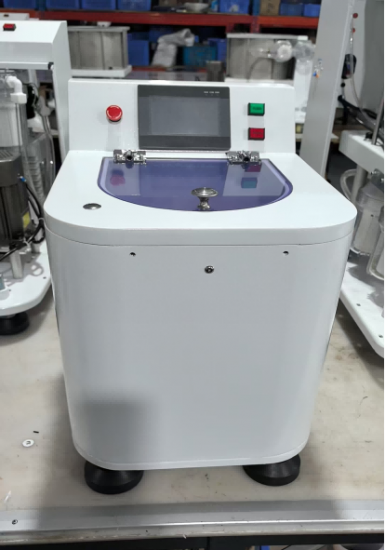

300ml Lab Planetary Gravity Single Cup Stirring Defoaming Machine

Model: TMAX-XXH-300

Application: Suitable for the dispersion, mixing, and defoaming of multi-component materials (such as silicone, multi-component epoxy resin, etc.).

Standard container: 300ml (PE + PP φ78×90) or 150ml (PE + PP φ60×72);

Maximum processing capacity: 150g to 500g; ≤180ml;

Revolution: 300 to 2000 rpm, stepless speed regulation, adjustable in 1 rpm increments as per user requirements;

Rotation: Fixed speed ratio of 0.65;

Set time: 0 to 3000 seconds × 5 (five steps in total), accuracy of 1 second;

Parameter storage capacity: 5 groups;

Bearings: Japanese NSK bearings;

Control system: Human-machine interaction, Chinese interface, touch screen operation;

Balance adjustment: Dual cup configuration for balance;

Transmission method: Gear transmission;

Working principle: Planetary and central rotation without wing, using centrifugal gravity;

Alarm device: Detection of the upper cover not being closed during operation;

Safety protection: Locking of the upper cover during operation, stopping operation when the upper cover is opened;

Applicable temperature and humidity: 10 to 40 ℃; 20 to 80% RH (no foggy moisture);

Voltage: AC220V ± 5%; 1-phase; 50 to 60 Hz;

Power: Main unit rated power 500W

Overall dimensions: L410 × W528 × H520mm;

Main unit weight: 35kg.

Equipment features:

The highest centrifugal gravity generated by self-rotation and planetary rotation is nearly 400G, achieving strong dispersion and defoaming and without spiral blades.

It realizes stirring and dispersion within the container and no need for cleaning.

It would not contaminate the materials or damage the properties of the materials (especially fiber materials).

Human-machine interaction, convenient operation; optimized design of ultra-small, ultra-light, and ultra-quiet.
