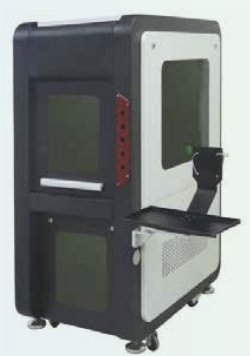

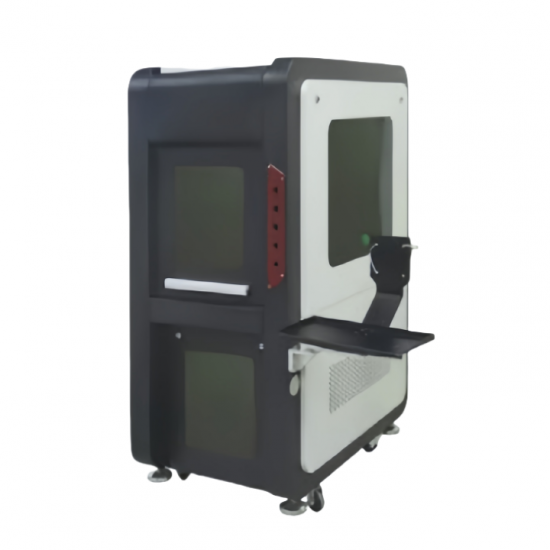

355nm Wavelength Vertical Type Laser Marking Equipment with Ultraviolet Laser

355nm Wavelength Vertical Type Laser Marking Equipment with Ultraviolet Laser

Technical parameters:

1) Laser power :3W@30KHZ

2) Wavelength :355nm(ns) (1064nm and 532nm optional)

3) Life: 20,000 hours

4) Frequency range: frequency 30~100kHz

5) Pulse width <25ns@30KHZ

6) Etching size range :≤150mm

7) Minimum line width :≤0.03mm

8) Laser repetition accuracy :±0.01mm

9)CCD positioning accuracy ±5um

10) Maximum speed :10000mm/s

11)) Equipment size: Length * width * height =1100mm*790mm*1730mm

12) German imported galvanometer

Equipment configuration:

1) Fully enclosed cabinet                    1Set

2) Ultraviolet laser                               1Set

3) German SCANLAB galvanometer  1Set

4)XY axis moving module                   1Set

5) High-precision industrial cameras   1Set

6) Water cooler                                    1Unit

7) Dust removal device                       1Set

8) Industrial computer                         1Unit

Successful cases:
