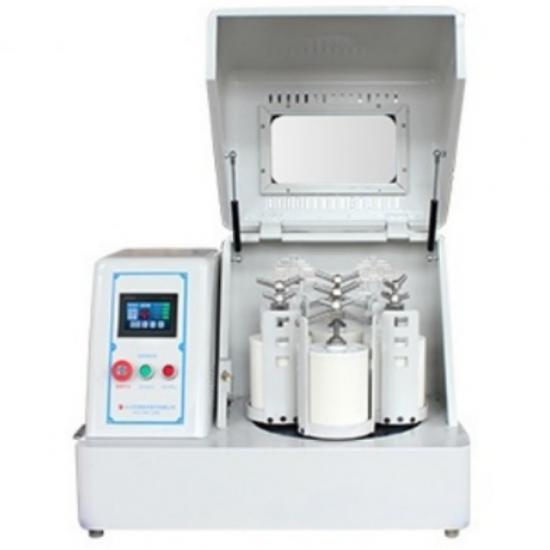

2L to 100L Micro-Computerized Touch Screen Planetary Ball Mill with Timing and Power-Off Memory Functions

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-XQM-T
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
20 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

2-100L Micro-Computerized Touch Screen Planetary Ball Mill with Timing and Power-Off Memory Functions

Product introduction

The micro-computerized touch screen planetary ball mill is equipped with a touch screen operation control system on the basis of the conventional planetary ball mill, further enhancing the equipment grade and operation performance. The micro-computerized touch screen planetary ball milll is mainly designed to meet the higher requirements of users for equipment quality and operation performance.

Product applications

Microcomputer touch screen planetary ball mill applies to the production fields of electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganese oxide catalyst, phosphors, rare earth polishing powder, glass powder electronics, fuel cells, zinc oxide varistors, piezoelectric ceramics, nano-materials, disc ceramic capacitors, MLCC, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphors, feed zinc oxide, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite products.

Product feature

Strong function of control system.

Provided with many functions such as the setting of password, freely programming, multiprogram storage and transfer, process monitoring and failure warning.

Visualized touching operation, simple and humanized design.

Parameters of micro-computerized touch screen planetary ball mill

Main Parameters of Computerized Planetary Ball Mill
Drive Mode	Gear drive and belt drive
Operation Mode	Two or four grinding jars working together
Maximum Loading Capacity	2/3 of the capacity of milling jar
Volume of the ball mill jar	Each can is 5L-50L, with a total volume of 20L-200L
Feeding Size	Soil material≤10mm, other materials≤3mm
Output Granularity	Smallest granule reaches 0.1 μm
Rotational Speed Ratio	1/2
Max. Continuous Operating Time	72hours
Speed adjustment mode	The brand frequency converter offers continuous speed control with a speed accuracy of 0.2/min.
Materials of Jar	Stainless steel, agate, nylon, corundum, zirconia, etc.

Main Parameters of Computerized Planetary Ball Mill
Model No.	Power (kw)	Voltage	Dimension (mm)	Revolution Speed (rpm)	Rotation Speed (rpm)	Total Timing (min)	Alternating Run Time of Forward & Reversal Rotation (min)
TMAX-XQM-2(T)	0.75	220V-50Hz	750470564	35-335	70-670	1-9999	1-999
TMAX-XQM-4(T)	0.75	220V-50Hz	750470564	35-335	70-670	1-9999	1-999
TMAX-XQM-6(T)	0.75	220V-50Hz	750470564	35-335	70-670	1-9999	1-999
TMAX-XQM-8(T)	1.5	220V-50Hz	900600640	35-290	70-580	1-9999	1-999
TMAX-XQM-10(T)	1.5	220V-50Hz	900600640	35-290	70-580	1-9999	1-999
TMAX-XQM-12(T)	1.5	220V-50Hz	900600640	35-290	70-580	1-9999	1-999
TMAX-XQM-20(T)	4	380V-50Hz	1200750920	25-215	50-430	1-9999	1-999
TMAX-XQM-40(T)	5.5	380V-51Hz	14008501160	20-195	40-390	1-9999	1-999
TMAX-XQM-60(T)	7.5	380V-52Hz	16009901250	27-174	40-260	1-9999	1-999
TMAX-XQM-100(T)	11	380V-53Hz	175011401330	27-160	40-240	1-9999	1-999

Main Parameters of Computerized Planetary Ball Mill
Model	Power (KW)	Speed Control Mode	Net Weight (kg)	Noise≤db
TMAX-XQM-2(T)	0.75	Frequency Control	93	60db
TMAX-XQM-4(T)	0.75	Frequency Control	93	60db
TMAX-XQM-6(T)	0.75	Frequency Control	93	60db
TMAX-XQM-8(T)	1.5	Frequency Control	150	60db
TMAX-XQM-10(T)	1.5	Frequency Control	150	60db
TMAX-XQM-12(T)	1.5	Frequency Control	150	65db
TMAX-XQM-20(T)	4	Frequency Control	330	65db
TMAX-XQM-40(T)	5.5	Frequency Control	468	68db
TMAX-XQM-60(T)	7.5	Frequency Control	900	68db
TMAX-XQM-100(T)	11	Frequency Control	1250	68db

Model No.	Specifications	Matchable Sizes of Mill Jars	Matched Quantity	Remarks (Optional)
TMAX-XQM-2(T)	2L	50-500ml	4 pcs	Matched with vacuum mill jars from 50ml to 250ml
TMAX-XQM-4(T)	4L	250-1000ml	4 pcs	Matched with vacuum mill jars from 50ml to 1000ml
TMAX-XQM-6(T)	6L	1-1.5L	4 pcs	Matched with vacuum mill jars from 50ml to 1000ml
TMAX-XQM-8(T)	8L	1-2L	4 pcs	Matched with vacuum mill jars from 50ml to 1500ml
TMAX-XQM-10(T)	10L	1-2.5L	4 pcs	Matched with vacuum mill jars from 1L to 2L
TMAX-XQM-12(T)	12L	1-3L	4 pcs	Matched with vacuum mill jars from 1L to 2L
TMAX-XQM-20(T)	20L	2-5L	4 pcs	Matched with vacuum mill jars from 2L to 4L
TMAX-XQM-40(T)	40L	5-10L	4 pcs	Matched with vacuum 5L mill jars
TMAX-XQM-60(T)	60L	10-15L	4 pcs	Matched with vacuum 10L mill jars
TMAX-XQM-100(T)	100L	20-25L	4 pcs	Matched with vacuum 20L mill jars

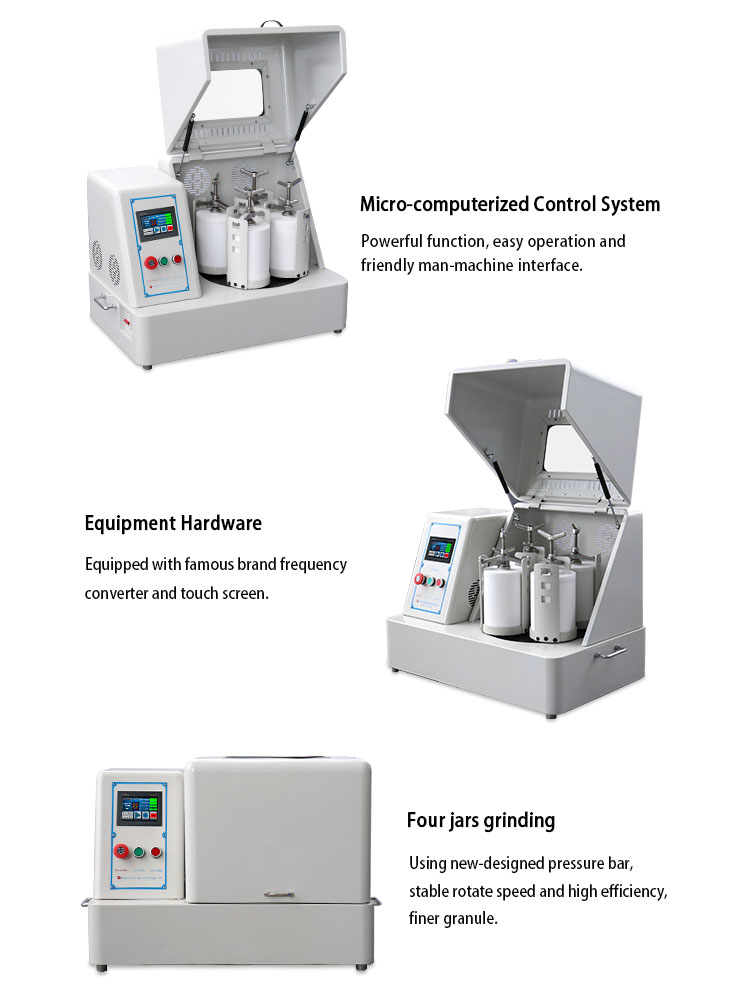

Product detail picture

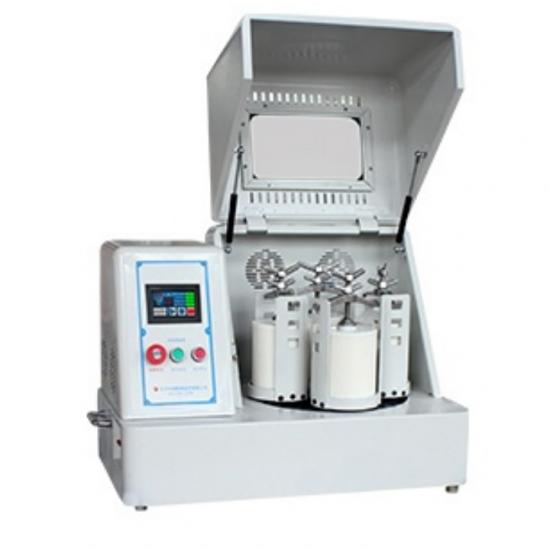

Planetary Ball Mill

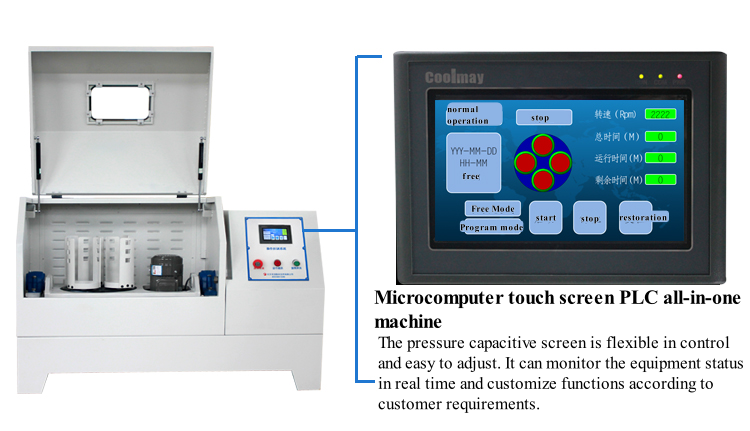

Our company has also launched a microcomputer touch screen PLC all-in-one machine, allowing customers to choose the control panel according to their own needs.

Planetary Ball Mill

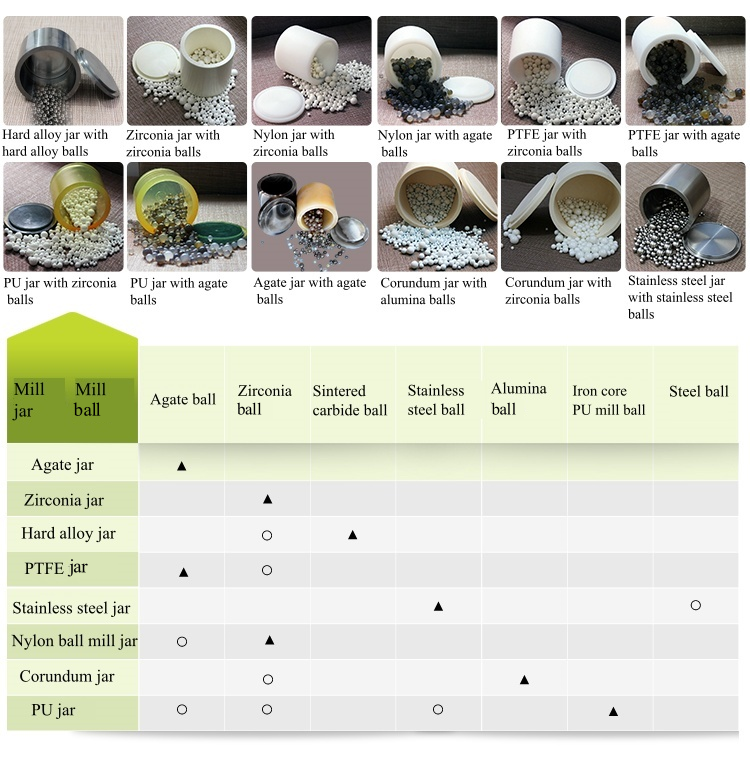

Reference for matching ball milling jars and grinding balls

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
