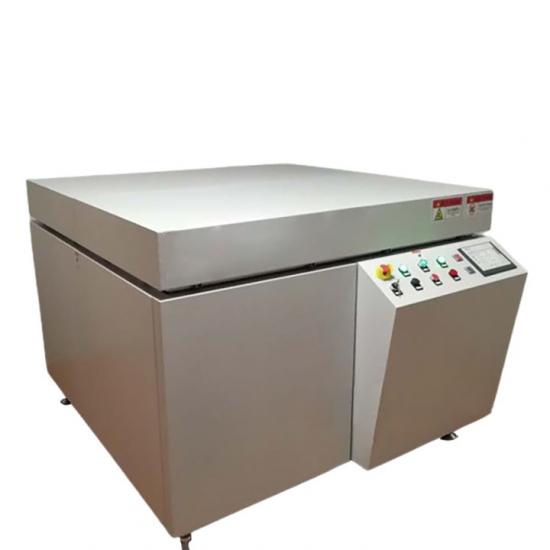

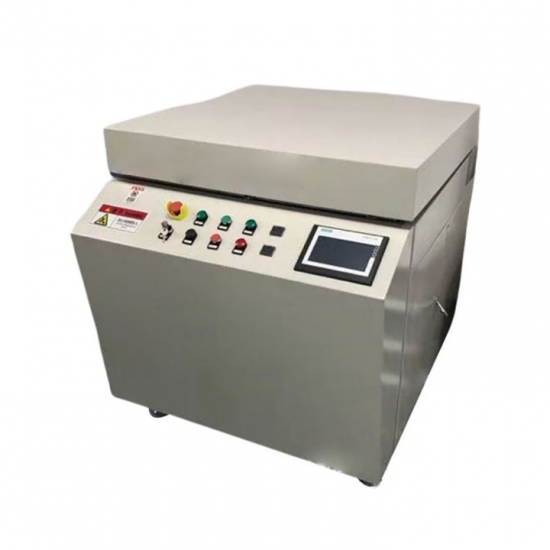

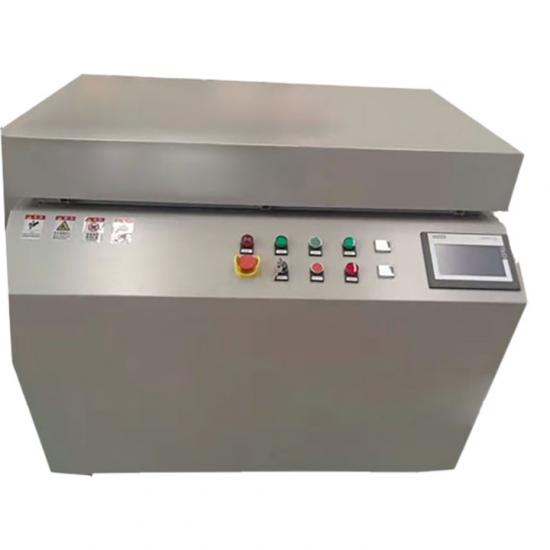

180C Electric Heating Small Laboratory Laminating Machine for Making Perovskite Solar Cells

Equipment type

YDS0405

Lamination area

400X500mm

Overall dimension

700x800x1100mm(height)

Equipment weight

0.3T(main engine)+0.2T(vacuum system) or 38KG

Power source

380V3 Phase 4 line

Bee value power consumption

4KW

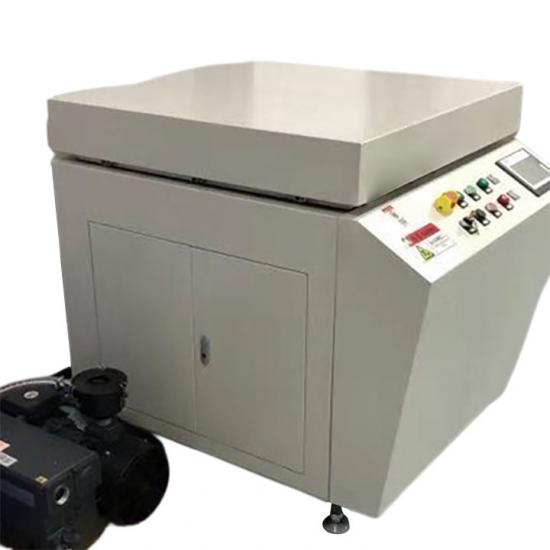

Vacuum pump speed

8L/S

Operating power consumption

1.5KW

Control mode

Automatic/manual; Free switching

Limiting vacuum

20PA

Heating method

Electric heating

Temperature control mode

PID control

Maximum temperature

180 ℃

Temperature uniformity

±3℃

Vacuum vent during power failure

In the case of power failure, the manual lamination can continue, and the air release handle can be moved to complete the air release

Equipped with gas circuit outage protection

In the case of sudden power failure, the air circuit system is automatically sealed to prevent the cylinder from falling down the upper cover

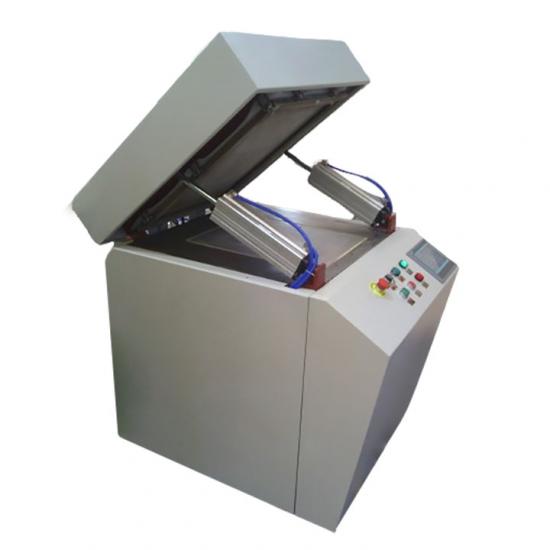

Emergency cover opening system

In the event of an emergency power failure and other abnormal conditions, you can manually open the upper cover and take out the component

Set the emergency button

Emergency situations can be dealt with quickly and forced to cut off the power supply of the whole machine

Keep the upper cover safe in case of misoperation

Set the emergency button switch, press it when there is an accident, the laminating organ will cut off the main power supply, and the upper cover will remain in place

Insufficient vacuum alarm

When the vacuum degree of the lower chamber fails to meet the set requirements, the system will alarm
