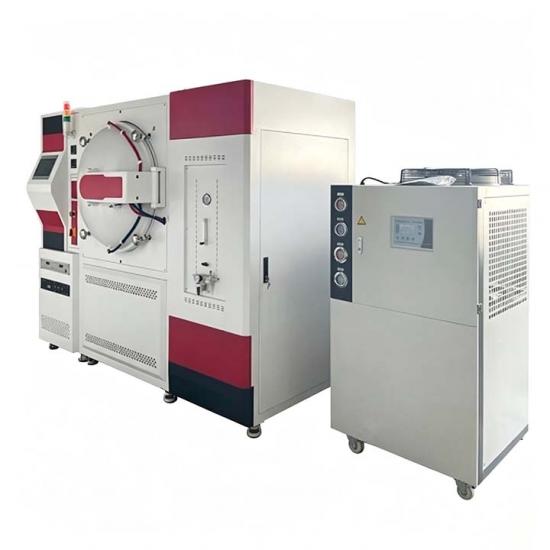

1500C High Temperature Vacuum Molybdenum Belt Furnace

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-ZY-VMBF
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

1500C High Temperature Vacuum Molybdenum Belt Furnace

Features

Controller: Features an intelligent system with 30-segment programmable heating curves.Heating and temperature control accuracy reaches ±1°C.

High-Temperature Molybdenum Strip: Heated by molybdenum strips inside the chamber, ensuring uniform heating, high cleanliness, and excellent process ability.

Tight Fit: Equipped with sensor failure detection, accompanied by audible and visual alarm prompts.

Easy Operation: High degree of automation with a user-friendly human-machine interface for convenient and efficient operation.

Specification

Item	Specification
Voltage (AC)	380V
Temperature Control Accuracy	±1℃
Chamber Size (L×W×H)	400×200×200 mm 400×350×300 mm 600×400×400 mm 900×600×600 mm
Working Temperature	Room Temperature ~ 1500℃
Max. Temperature	1500℃
Heating Element	High-Temperature Molybdenum Sheets
Max. Heating Rate	1-20℃/min (adjustable)
Atmosphere	Nitrogen (N₂), Argon (Ar), Hydrogen (H₂) and other gases available
Heating Power	42 kW / 67 kW / 105 kW / 185 kW
Insulation Material	Molybdenum + Stainless Steel Sheets
Vacuum Level	6.67×10⁻³ Pa (Mechanical Pump + Diffusion Pump) 6.67×10⁻⁴ Pa (Mechanical Pump + Molecular Pump)
Control System	Fully automatic control system with temperature calibration and compensation functions; 30-segment time-temperature curve programmable
