1300C Desktop Microwave Tube Type Pyrolysis Furnace

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-HY-RZG1510
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

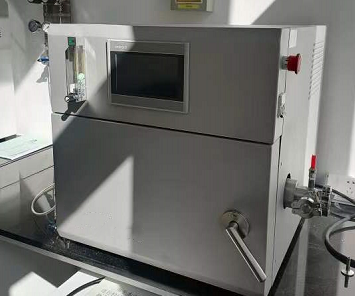

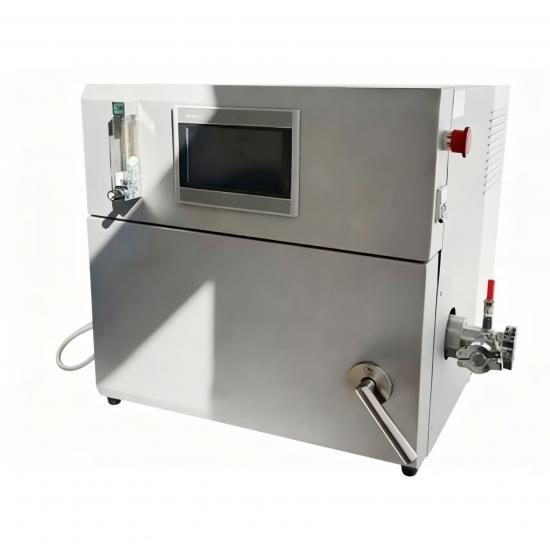

1300C Desktop Microwave Tube Type Pyrolysis Furnace

(The following pictures are for reference only)

I. Overview:

The HY-RZG type bench-top microwave tube type pyrolysis furnace is a new generation of microwave rapid pyrolysis/cracking experimental platform, suitable for microwave pyrolysis experiments on materials such as plastics, organic waste salts, waste activated carbon, biomass, coal quality and garbage.

Main features:

Ø Industrial-grade brand microwave source, with adjustable microwave output power to ensure continuous and stable operation of the equipment for a long time;

Ø Compact structure, overall design, safe and reliable;

Ø Various unique crucibles and insulation structures are available for selection, without causing pollution to the materials;

Ø Fast pyrolysis speed, mild reaction.

II. Main Technical Parameters:

	TMAX-HY-RZG1510
Voltage	220±10V 50Hz
Rated power	3kW
Microwave output power	0.01 to 1.40 kW, adjustable continuously
Microwave frequency	2.45GHz
Working temperature	≤1100℃
Heating rate	≤100℃/min
Heating space	Ф40×130mm (Diameter × Length)
Temperature measurement method	Thermocouple
Temperature measurement range and accuracy	0 - 1300℃; Reading ±0.1%
Control method	PLC + Touch Screen
Control program	40 configurable process parameters, with data storage, export of experimental data; manual, automatic, and constant temperature control modes, real-time display of curves; dynamic data screen saver
Atmosphere requirements	Protective atmosphere, controllable flow rate
Anti-microwave leakage protection	Microwave leakage level < 0.5 mW/cm2
Magnetron alarm	Over-temperature alarm
Furnace door protection alarm	Lid closure switch

III. Product Configuration Table:

NO.	Name	Specification or Component Part	Quantity	Quantity
1	Power cord		1 set	16A/3 Socket plug, 3-meter power cord
2	Microwave source	Industrial-grade 1.5KW microwave system 1 set (including air-cooled magnetron and switching power supply)	1 set	1X1.5KW installed in the furnace body
3	Tube-type insulation system		1 set	1400℃ tube-type insulation structure
4	Quartz tube	Outer diameter: Φ40mm	2 pieces
5	Quartz boat		4 sets
6	Special heating material for microwave		1 set	With atmosphere protection, it can withstand temperatures up to 1800℃.
7	Thermocouple	RT-1300℃	1 pieces
8	Clamp connector	Φ40mm	1 set
9	PLC		1unit
10	Touchscreen	7 inches	1 set
11	Contactor		1 set
12	Circuit breaker		1 set
13	Relay		1 set
14	Switching power supply		1 set
15	Heater body	304 SS	1 set	Carbon steel powder-coated outer cover
16	Furnace door	304 SS	1 set	High-precision flange door, carbon steel powder-coated cover
17	Microwave shield		1 set
18	Handheld microwave leak detector		1 unit
19	Other accessories		1 set	Including heat-resistant gloves and material hooks

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
