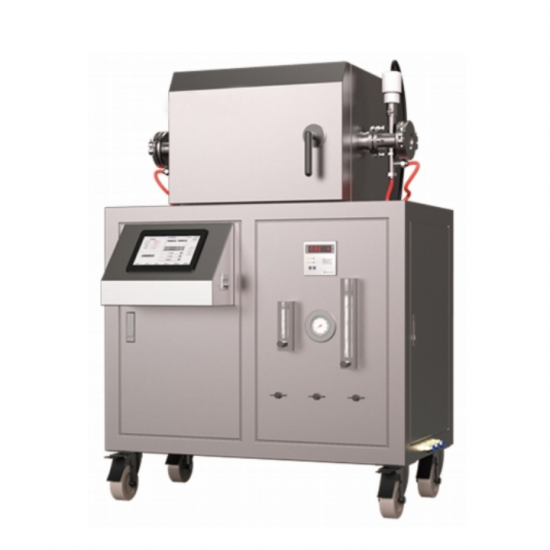

1600C Microwave High Temperature Tube Furnace Equipped with Atmosphere System

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-HY-ZG
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

1600C Microwave High Temperature Tube Furnace Equipped with Atmosphere System

Summarize

Microwave high temperature tube furnace is a standard multi-functional microwave high temperature tube experimental workstation, which is suitable for synthesis, roasting, heat treatment and sintering technology research under various atmosphere conditions, especially for various gas-solid phase/gas phase reaction, synthesis reaction and decomposition reaction.

Main feature

1) Industrial brand microwave source, microwave output power stepless adjustable, to ensure continuous and stable long-term operation of equipment;

2) Adopt quick connection flange, simple structure, easy operation;

3) Using the original insulation structure, no slag, no pollution; Durable;

4) Multi-functional application mode to meet a variety of experimental needs:

5) Open the door, power delay, professional microwave shielding technology to ensure safety.

Technical parameter

Model Parameter	HY-ZG1516	HY-ZG3016
Voltage	220±10V，50Hz	220±10V，50Hz
Microwave output power	0.01~1.40kW, continuously adjustable (Panasonic)	0.01~2.80kW, continuously adjustable (Panasonic)
Heating space (diameter x length)	φ40x130mm	φ60x140mm
Microwave frequency	2.45GHz
Operating temperature	<1600℃
Temperature measurement method	Thermocouple/infrared
Static limit vacuum	≤100Pa
Atmosphere system	Multi-channel atmosphere control pipeline, rapid pre-vacuuming, can be filled with oxidizing gas, inert gas, weak reduction gas, etc
Control mode	Programmable Logic Controller (Mitsubishi)+ Touch screen (Kunlun Mode)
Control program	Can set multi-stage process parameters, with data storage and export functions, a variety of control modes; One-button oven
Anti-microwave leakage	Microwave leakage level <1mW/cm2
Safety protection	Furnace door shutting switch, door open and power off, re-power delay, over-temperature alarm
Main body (L x W x H)	About 530x430x380mm		About 550x800x500mm

Consumables and optional accessories

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
