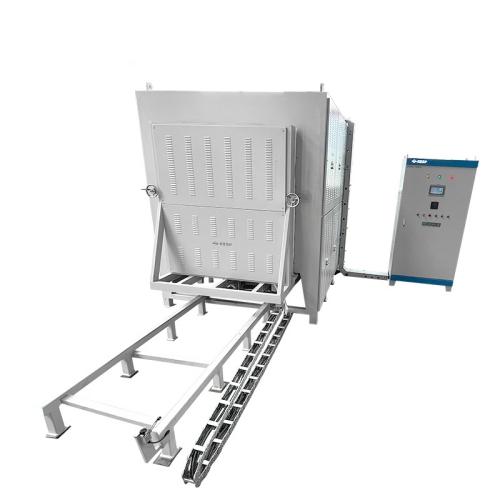

1200 to 1700℃ High Temperature Electric Resistance Sintering Furnace with Ceramic Bogie Hearth

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-GWL-STCY
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

1200 to 1700℃ High Temperature Electric Resistance Sintering Furnace with Ceramic Bogie Hearth

Introduction

GWL-STCY Series 1200℃ to 1700℃ High-temperature Ceramic Bogie Hearth Electric Resistance Furnace is widely applicable for sintering glass materials, ceramics, sintering for kinds of ceramics, the heating treatment for metals, and heat treatment of the new materials and composite materials, chemicals, refractory materials, development of new materials and other fields.

Ceramic bogie hearth electric resistance furnace is welded by steel and profiled steel. The furnace chamber is ceramic fiber and high-quality electric resistance wire, silicon carbide, which can save 80% energy-saving than refractory bricks kiln chamber. Shuttle kiln is mainly used for annealing, normalizing and stress relieving of bars and tubes, forgings, large weldments, and castings.

Standard features

The furnace chamber size can be customized, large and small size all customizes as customers request
The furnace door and furnace bottom side are integrated, electric control furnace door, the motor drive reducer drives the loading platform passes in and out, and the limited bit switch is installed
Loading Platform Capacity 100Kg to 10Ton (Can be modified)
Maximum using temperature 1700℃
Good working performance, nice outlook, less consumption and convenient to move
The programmable automatic temperature control system
Communication software with USB cable to the computer (optional)
Temperature control accuracy can reach to maximum ±1°C(Multi-Surface heating)
Imports of refractory material, good insulation properties, high-temperature resistance, heat shock resistance
Temperature controller: PID microcomputer control, automatic constant temperature, rapid temperature compensation.
Touch Screen Control

Specification

Item	1200℃ Type
Model	GWL-STCY
Power Supply AC	Three-phase 380V
Furnace Chamber Dimensions (mm)	Depth × Width × Height: 2000×1000×1000
Heating Element Installation Position	Evenly distributed on both sides and bottom of the furnace chamber
Temperature Control Accuracy	±1℃ (Integrated circuit control, no overshoot)
Furnace Temperature Uniformity	±5℃ (No-load)
Temperature Measuring Element	Type K thermocouple, measuring range 0–1200℃
Heating Rate	Adjustable freely; range: max. 15℃/min, min. 1℃/h
Heating Element	High-temperature alloy resistance wire
Furnace Body	CNC machined, polished, ground, pickled, phosphated, plastic powder coated and high-temperature baked. Antioxidant, acid/alkali resistant, corrosion resistant, high temperature resistant, easy to clean, attractive appearance
Furnace Body Structure	Air-cooled double-layer structure with directional baffles for full cold-air circulation, cooling conductor tabs and preventing high-temperature oxidation
Sealing (Furnace Mouth & Charging Table)	Step cross sealing; refractory with angled surfaces, sealing gap reduces as charging table closes
Charging Table Load Capacity	500 Kg
Charging Table Movement	Motor-driven in/out
Refractory Material	Vacuum-formed alumina lightweight lining; furnace mouth & bottom use lightweight hollow sphere alumina plates (high temp resistance, low heat storage, thermal shock resistant)
Insulation Material	Three layers: aluminum silicate fiber board, alumina fiber board, polycrystalline alumina fiber board
Shell Surface Temperature	<45℃ under long-term continuous operation
Protection	Integrated control module, dual-circuit control & protection: overshoot, over-temperature, thermocouple break, phase loss, over-voltage, over-current, current feedback, soft start, etc.
Control	Closed-loop SCR module phase-shift trigger control; constant voltage/current/power; inner current loop + outer voltage loop for current limiting, stable output and heater protection
Display Parameters	Temperature, segment number, segment time, remaining time, output power %, voltage, current, etc.
Buttons	Premium buttons (life >100,000 cycles) with LED indicators
Temperature Curve Setting	Intelligent controller with standard PID, APID, MPT; auto-tuning, self-learning, 30-segment programmable; ramp/hold, cycle, run, hold, stop; editable during operation
Touch Screen	Touch screen for curve setting; stores historical curves and data reports
Agitator Fan	Metal agitation fan, auto-start by PLC and temperature segments
Multi-Curve Input	30-segment total; 1×30, 2×14, 3×9, 5×5 segments; multiple curves storable and selectable
Standard Accessories	2 heating elements, 2 sets of tools, 1 crucible tong, 1 pair of high-temperature gloves
Warranty	1-year free warranty; heating elements not covered (free replacement if naturally defective within 3 months)
Notes	1. Recommended heating/cooling rate: 10–20℃/min (too fast shortens heater life) 2. No vacuum seal; do NOT feed flammable/explosive gases 3. Minor chamber cracks are normal; repairable with alumina coating 4. Avoid corrosive gases; inform in advance for S, Na etc. for special treatment 5. No high-temperature liquid spill on floor; use pallet or alumina powder 6. Install in well-ventilated, dry area
