Product Details

300ML Vacuum Planetary Centrifugal Deaeration Mixer


The planetary centrifugal vacuum mixer is designed for mixing and deaerating various kinds of liquid, slurry, paste, and powder materials. It could be used for mixing and homogenizing nanopowders, nanotubes, ceramics powders, battery powder/slurry, metal powders, and especially high viscosity slurry/paste. The vacuum mixing capability is integrated for best mixing results. The standard package includes containers and counter-weights.


Detailed technical parameters

Name

 300 mL Vacuum Planetary Centrifugal Mixer

Equipment type

TMAX-TP300S

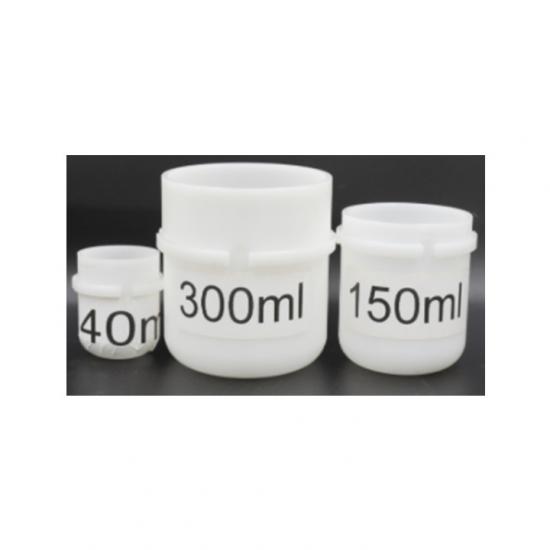

Container  Capacity

300ml*2(Cup)

The optimal capacity of mixing material

2-180ml*1(Cup)

Operation  Type

Human-machine Interaction Mode

Revolution Speed

100-2000RPM

Rotation Speed

Invariableness

Vacuum

60L/min、About -98KPa     60/Minute,APROX.-98KPa

Storage Program

5 storage programs (each program can be set to five steps)

Protection

Door Cover ,Breakdown, Overload

Dimension(mm)

650L*580W*550H

Voltage

0.5-1.0KW,220V

Weight

150KG   Net Weight:120 KG

Power Supply

(Uniphase),AC220V.50-60Hz

Clamp

Option

Syringe

Max30CC



Planetary Centrifugal Mixer


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
