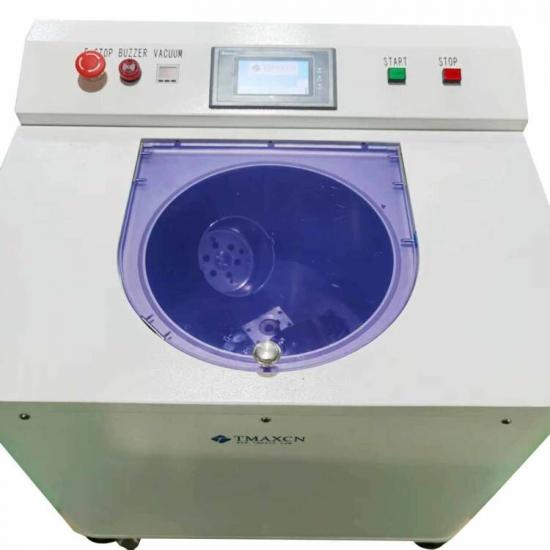

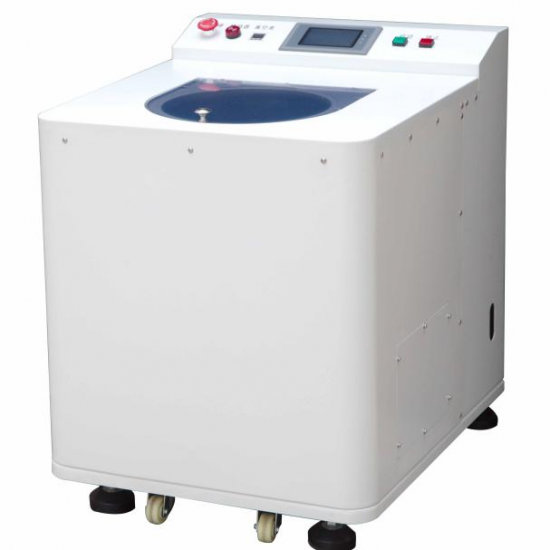

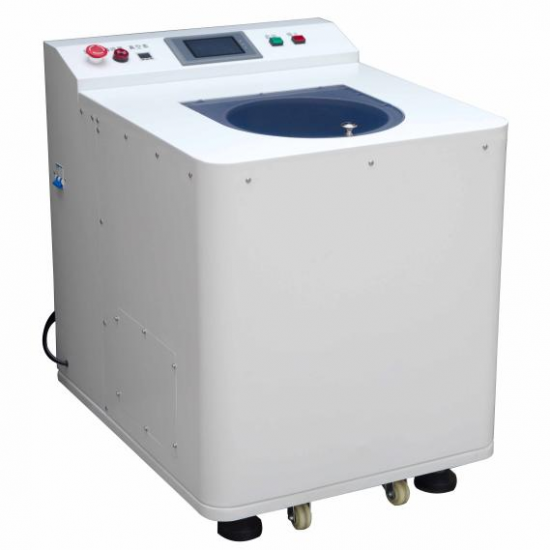

Two 10L Cups Lab Vacuum Planetary Centrifugal Mixer for High Viscosity Material

Two 10L Cups Lab Vacuum Planetary Centrifugal Mixer for High Viscosity Material

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-ITT-10000S
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details


Two 10l Cups Lab Vacuum Planetary Centrifugal Mixer for High Viscosity Material






Name:

Vacuum planetary gravity mixer (vacuum stirring and defoaming machine)

Model:

ITT-10000S

Purpose:

It is suitable for dispersing, mixing and defoaming of multi-component materials (silica gel, multi-component epoxy resin, etc.).

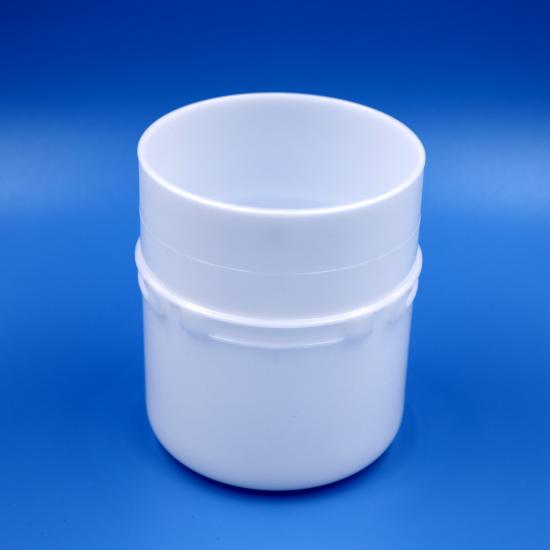

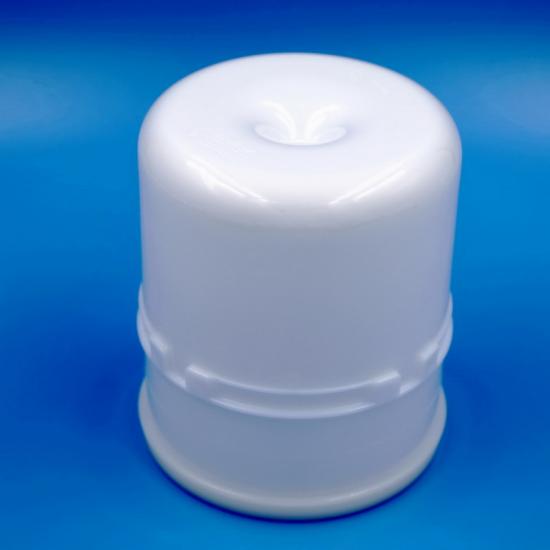

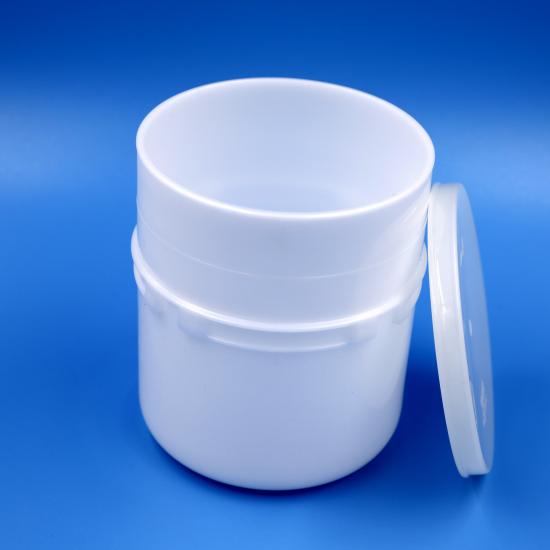

Standard container:

10LHDPEφ237*2584000mlHDPE φ173*1931500ML(HDPEφ130×146)

Maximum throughput:

1200g~18KG≤6000mL

Revolution:

100~800rpm stepless speed regulation, adjust 1rpm according to the actual needs of users;

Set time:

0~3000S*5(a total of five steps), the accuracy is 1s;

Parameter storage:

5 groups;

Vacuum degree:

-100KPa, precision 0.1KPa;

Vacuum source:

Built-in two-stage advanced vacuum pump 90L/min (=15L/sec=54~60m²/hour);

Absolute limit pressure (partial pressure 5*10-2Pa and 0.05Pa);

Absolute limit pressure (full pressure 4*10-1Pa and 0.4Pa)

Vacuum Settings:

Vacuum independent switch, with vacuum delay function, vacuum degree can be adjusted arbitrarily;

Bearing:

Japan NSK bearing;

Control System:

Human-machine dialogue, Chinese interface, touch screen operation;

Balance adjustment:

Double cup configuration balance;

Transfer method:

Gear drive;

Working principle:

Public rotation wingless centrifugal gravity method;

Alarm system:

When running, the upper cover is uncovered and detected;

Safety protection:

During operation, the upper cover is locked, and when the upper cover is opened, it stops working;

Applicable temperature and humidity:

10~40 ℃; 20~80%RH (if there is no foggy moisture, it is enough);

Voltage:

AC380V±5%; 3-Phase; 50~60Hz;

Power:

The rated power of the host is 6KW;

Dimensions:

L1200*W1000*H1100mm

Host weight:

950Kg

Features:

Rotation and revolution motion can generate a centrifugal gravity of up to 800G, which can be used for strong dispersion and defoaming; there is no spiral blade, which can realize stirring and dispersion in the container; no cleaning is required, and it will not pollute the material; it will not damage the properties of materials (especially fibrous materials); Human-computer interaction, easy to operate; ultra-small, ultra-light, ultra-quiet optimized design.










 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
