Mini Nano Vertical Semi-circular Arc Planetary Ball Mill

Mini Nano Vertical Semi-circular Arc Planetary Ball Mill

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-XQM
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    10 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

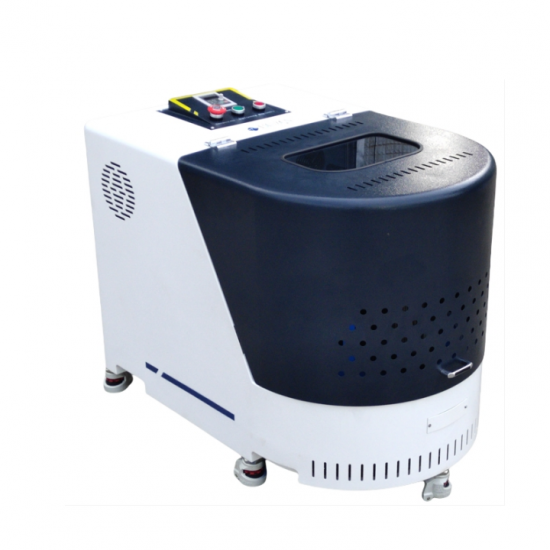

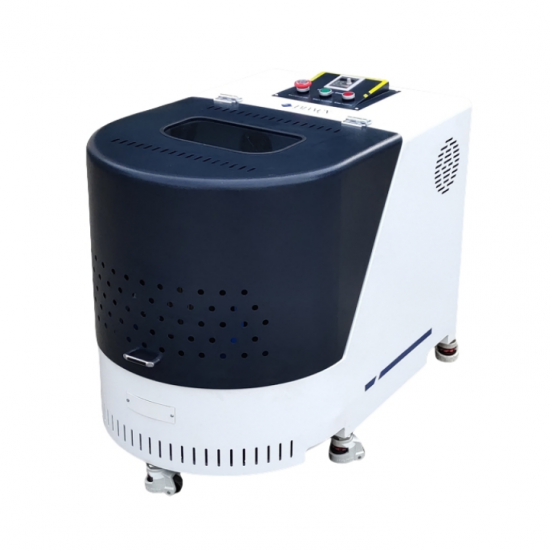

Mini Nano Vertical Semi-circular Arc Planetary Ball Mill











Characteristic

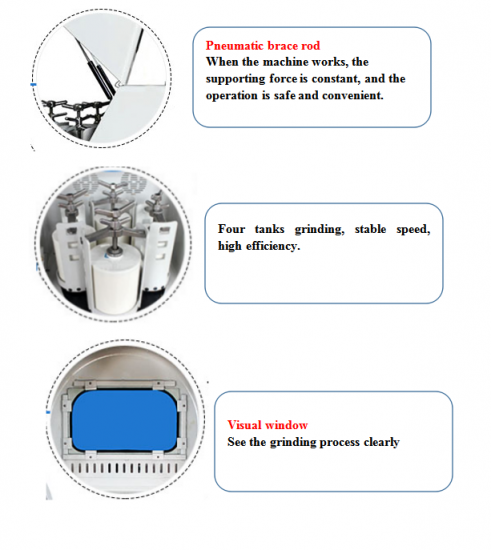

Equipment through professional appearance modeling design, the shell adopts high precision mold stamping molding, generous and delicate, high-end stable, the planet disk adopts casting molding, Numerical control processing technology on structure component processing, transmission gear combination of high-temperature resistant non-metal and metal precision gear, metal heat treatment process of nitriding, can ensure abrasion resistance to prevent the broken shaft axis of rotation, to ensure smooth and quiet equipment running at a high speed, can watch the device monitor grinding jar can be self-locked locking synchronization at the same time, the  operation is convenient, safe and reliable, shell color, the products give New vitality of products, activate the new life of products, in line with the international and domestic aesthetic needs, in line with ergonomics.



Mode of transmission

Gear transmission

Mode of working

Two and four ball grinding jars work

simultaneously

Maximum loading capacity of materials

Two thirds of the volume of the ball mill

jar

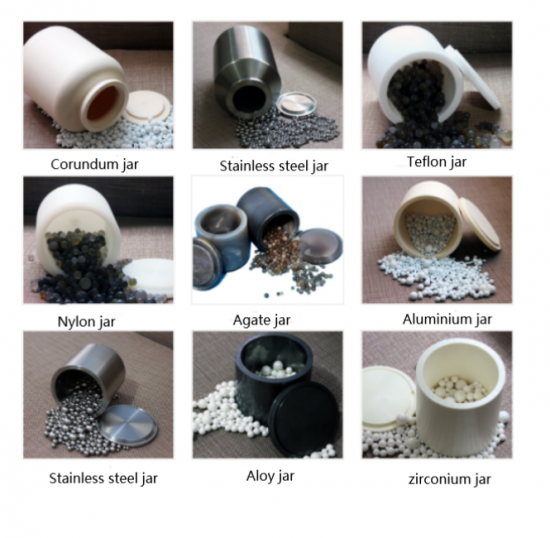

Ball mill tank volume

0.05-4L per jar, total volume 0.2-16L

Feed granularity

Soil material≤10mm, and other

materials≤3mm

Granularity of discharge

Up to 1 micron

Mode of speed regulation

Infinitely adjustable-speed



Model

Volume

Configurable ball mill

specifications

Qty

Configurable vacuum  ball

mill volume

Locking device

XQM-0.2A

0.2

10-50ml

4

10ml

manual

XQM-0.4A

0.4

50-100ml

4

50ml

manual

XQM-1A

1

50-250ml

4

50-100ml

manual

XQM-2A

2

50-500ml

4

50-250ml

manual

XQM-4A

4

250-1000ml

4

50-500ml

manual

XQM-8A

8

1-2L

4

50-2000ml

manual

XQM-10A

10

1-2.5L

4

1-2L

manual

XQM-12A

12

1-3L

4

1-2L

manual

XQM-16A

16

2-4L

4

1-3L

manual


Model

Power supply

Power(kw)

Total time to run the set(min)

Alternating positive and negative running time(min)

Adjustable speed revolution(rpm) rotation(rpm)

XQM-0.2A

220V-50HZ(single-phase)

0.09

1-9999

1-999

60-580

120-1160

XQM-0.4A

220V-50HZ(single-phase

0.25

1-9999

1-99

47-465

94-930

XQW-1A

220V-50HZ(single-phase

0.75

1-9999

1-999

35-370

70-740

XQM-2A

220V-50HZ(single-phase

0.75

1-9999

1-999

35-370

70-740

XQM-4A

220V-50HZ(single-phase)

0.75

1-9999

1-999

35-370

70-740

XQM-8A

220V-50HZ(single-phase)

1.5

1-9999

1-999

35-320

70-640

XQM-1A

220V-50HZ(single-phase

1.5

1-9999

1-999

35-320

70-640

XQW-1A

20V-50HZ(single-phase

2.2

-9999

1-99

30-320

60-510

XQM-16A

380V-50HZ(three-phase)

3

1-9999

1-999

35-255

70-510


Model

Standard panel(optional touchscreen)

Lubrication way optional (automatic grease-adding device)

Mode of speed regulation

Weight(kg)

Size(Length* width*height)

Noise≤db

XQM-0.2A

Common

grease

Frequency control

18

430*250*270

50±5

XQM-0.4A

Common

grease

Frequency control

26

520*300*420

55±5

XQM-1A

Common

grease

Frequency control

74

740*470*600

60±5

XQM-2A

Common

grease

Frequency control

74

740*470*600

60±5

XQM-4A

Common

grease

Frequency control

80

740*470*600

60±5

XQM-8A

Common

grease

Frequency control

132

870*560*680

65±5

XQM-10A

Common

grease

Frequency control

138

870*560*680

68±5

XQM-12A

Common

grease

Frequency control

140

870*560*680

68±5

XQM-16A

Common

grease

Frequency control

200

940*600*670

68±5




Planetary mill is an indispensable equipment for high-tech material mixing, fine grinding, sample preparation, nano-material dispersion, new product development and small batch production. The product is small in size, complete in function and high in efficiency. It is an ideal equipment for scientific research institutions, universities, and corporate laboratories to obtain microparticle research samples (four samples can be obtained simultaneously for each experiment). Grind the sample under vacuum.


Widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemicals, light industry, medicine, beauty, environmental protection and other sectors, such as: electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganese oxide, catalysts, fluorescence Powder, long afterglow luminous powder, rare earth polishing powder, electronic glass powder, fuel cell, ceramic capacitor, zinc oxide varistor, piezoelectric ceramic, nano material, chip ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO Varistor, arrester valve, strontium titanate ring varistor, ceramic filter, dielectric ceramic, piezoelectric transducer, piezoelectric transformer, chip resistor, thick film circuit, pyroelectric potentiometer, alumina ceramic , Production of zirconia ceramics, fluorescent powder, zinc oxide powder, cobalt oxide powder, nickel-zinc ferrite, manganese-zinc ferrite and other industry products.

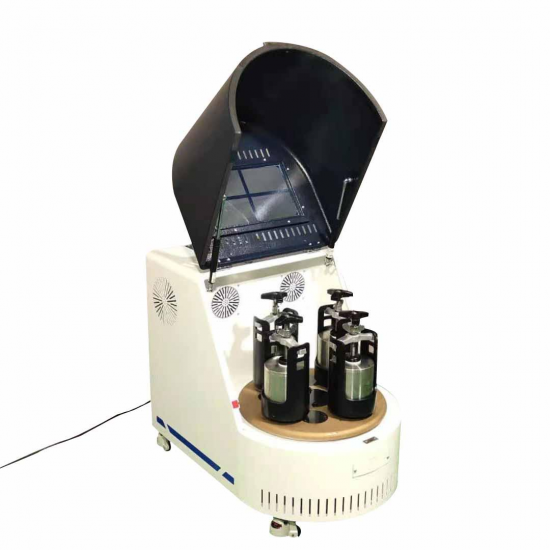

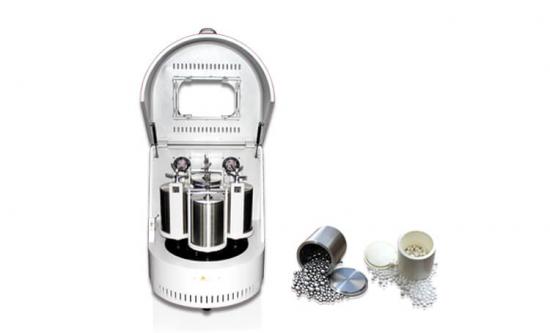

The planetary pulverizer is designed to crush, grind and disperse metal, non-metal, organic, Chinese herbal medicine and other powders. Especially suitable for laboratory research use. Strong shear, impact, and rolling can achieve the purpose of crushing, grinding, dispersing and emulsifying materials. The planetary ball mill is equipped with four ball mill pots on the same turntable. When the turntable rotates,  the ball mill pan revolves around the turntable axis and at the same time rotates  around its own axis, making planetary motions. The grinding balls in the tank collide with each other in high-speed motion to grind and mix the sample. The product can be used for dry and wet grinding and mixing products with different particle sizes and materials. The minimum particle size of the ground product can be as small as 0.1 microns. Can well meet the requirements of various process parameters. At the same time, due to the advantages of small batch, low power consumption, and low price, it is the primary choice for schools, scientific research units, and enterprises to carry out research on crushing technology, new materials, and coatings.








 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
