Lithium Battery Slurry Vaccum Mixing Machine for Battery Anode And Cathode Material Mixing

Lithium Battery Slurry Vaccum Mixing Machine for Battery Anode And Cathode Material Mixing

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna



  • Item No.:

    TMAX-XHB-100L
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Product origin:

    China
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

Lithium Battery Slurry Vaccum Mixing Machine for Battery Anode And Cathode Material Mixing



Equipment model

Dimensions

Equipment weight

Design volume

Effective volume

Revolution power

Rotation power

Revolution speed

Mixing speed

TMAX-XHB-100L

2100mmx1350mmx2200mm

2600kg

152L

100L

5.5KW

11KW

35r/min

70r/min

TMAX-XHB-200L

2400mmx1600mm×2750mm

4000kg

265L

200L



11KW

22KW

31r/min



65r/min

TMAX-XHB-300L

3060mmx1800mmx3000mm

6800kg

369L

300L

22KW

37KW

30r/min



58r/min

TMAX-XHB-600L

3800mmx2000mm×4000mm

11500kg

688L

600L

45KW

55KW

25r/min

50r/min

l  The productivity

n  The high speed line reach up more than 20m/s, and in the end of  mixing flow can be formed rapidly in the various regions of the agitator. The time of dispersion is shortened (30-50%). After full agitation the battery size is small and highly consisted , and effectively solve the phenomenon of battery slurry agglomeration.

l  high precision

   n  After the various equipment components uses advanced processing technology and equipment for processing and assembly, is in high, interchangeability, low coefficient of friction in running device making more smoothly low noise and long life.

l  Sealed

   n 2 sets of mechanical seals with good soft and hard seals of various materials. The planetary box adopts the latest fully sealed structure. The all-round sealing design concept ensures zero pollution in the mixing process and high vacuum retention.

l  The gap

   n  between low paddle and paddle (5-8mm), paddle and barrel wall (3-6mm), paddle and low barrel bottom (3-6mm), all-round, no dead angle mixing and dispersion, making the material short time to penetrate, impact, and homogenize quickly.

l  High-strength

 n  The equipment transmission power components have been subjected to rigorous theoretical calculations, and the design is more reasonable. It is suitable for mixing and dispersing raw and negative raw materials of various high-viscosity and high-solid batteries, and is suitable for different mixing processes (dry method mixing and wet mixing). Welcome new and old customers to contact us for slurry mixer.

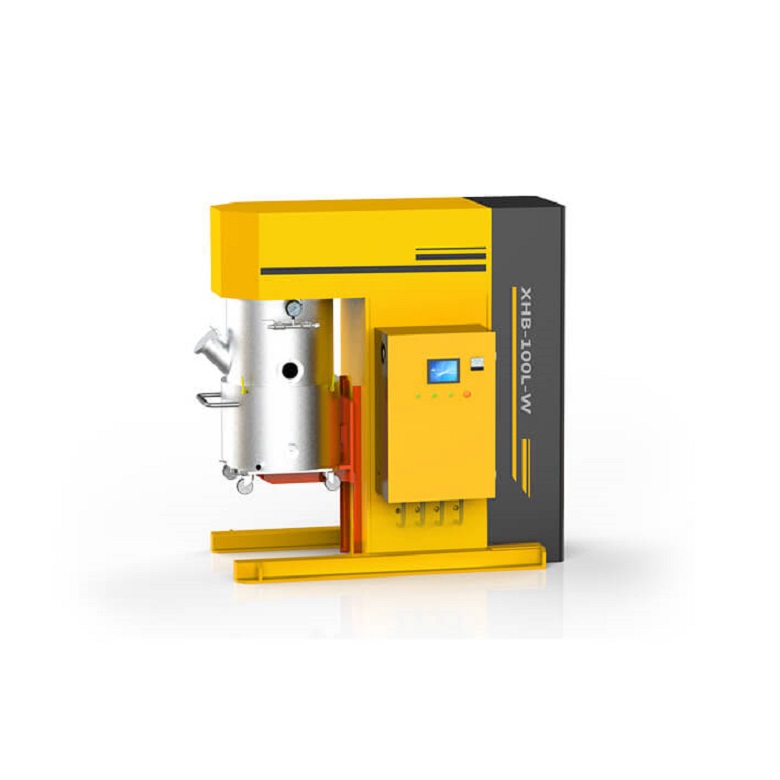

Slurry Vaccum Mixing Machine



 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
