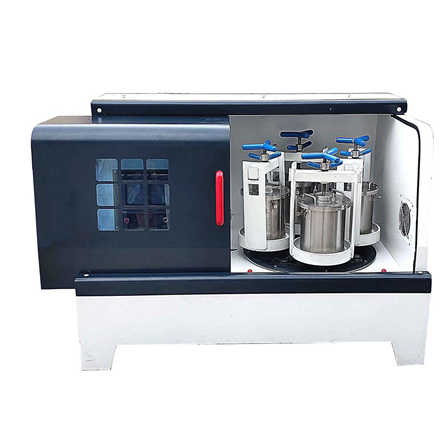

Light Vertical Ball Mill Machine with Intelligent Panel for Mass Production

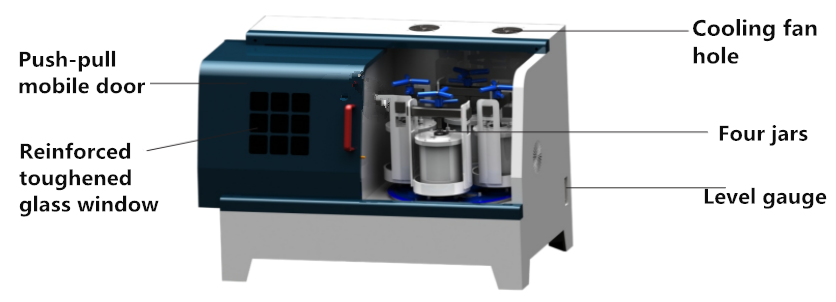

production ball mill

Introduction

Vertical manufacturing planetary ball mill was conducted based on the principles of small planetary ball mill amplification of large planetary ball mill design, manufacture, production planetary ball mill is mainly suitable for large users, Chinese batch grinding, mixing, alloying and production, is widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, cosmetic, environmental protection, etc.



Features

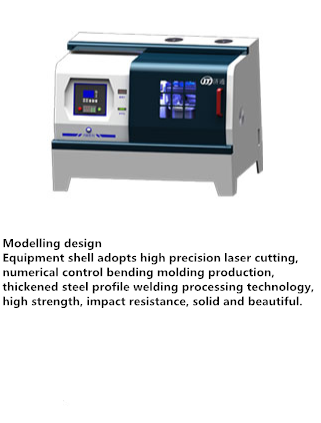

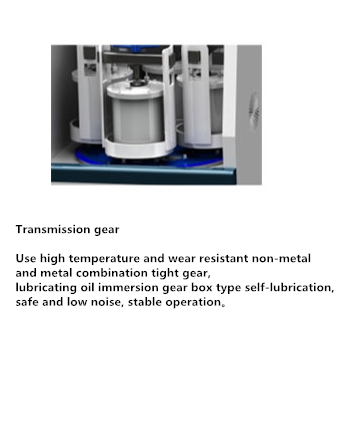

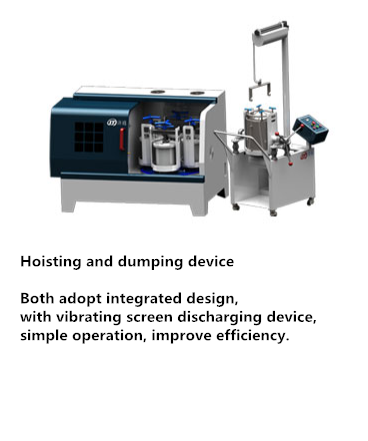

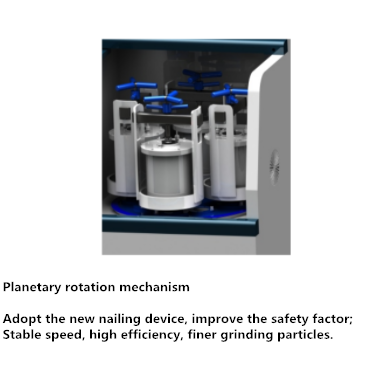

Equipment through professional appearance design, shell using high-precision laser cutting, numerical control bending molding, generous and delicate, high-end stable, planetary disk using one-body molding, structural components using numerical control processing technology processing,The nitriding metal heat treatment process ensures the wear-resisting of the rotating shaft and prevents the shaft from breaking. The transmission gear adopts high-temperature wear-resisting non-metal and metal combination precision gear. The lubricating oil foaming gear box type self-lubrication is adopted to achieve good heat dissipation and the liquid oil level meter is equipped for easy replacement to ensure the stable and quiet operation of the equipment at high speed.Can watch the device monitor grinding jar can be self-locked locking synchronization at the same time, the operation is convenient, safe and reliable, equipment can monitor temperature instrument ball mill cavity in the body temperature, easy configuration level heavy equipment installation, lifting and pouring device adopts integrated design, both separated with vibrating screen device design agencies, simplicity of operation, implement quick easy take cans, unloading and loadingTank, reduce labor intensity, improve production efficiency.The shell matches the color of the product, gives the product new vitality, activates the new life of the product, conforms to the international and domestic aesthetic needs, and conforms to the ergonomics.



Product Performance

Drive mode

Gear drive

Working mode

Two jars and four jars working at the same time

Maximum sample size

Two thirds of the volume of the ball mill jar

Jar volume

5L-25L, total volume of 20 L- 100 L

Feeding granularity

Soil material ≤ 10 mm, other materials ≤ 3 mm

Discharge material size

Min 0.1um

Speed ratio

 (revolution: rotation)

12

Rotating speed

Revolution 335r / min,

Rotation 670r / min

Speed mode

Infinitely adjustable-speed

Vertical ball mill



Vertical production type planetary ball mill(1)

Model

Specification

Volume of configurable ball mill jar

NO.

Volume of vacuum ball mill jar

Locking method

PBM-20

20

2-5L

4

2-4L

Self-locking

PBM-40

40

5-15L

4

5L

Self-locking

PBM-60

60

10-15L

4

10L

Self-locking

PBM-80

80

15-20L

4

15L

Self-locking

PBM-80

100

20-25

4

20L

Self-locking



Vertical production type planetary ball mill(2)



Model

Input power

Power

Operating time setting

(min)

Positive and negative alternating operation time(min)

Adjustable speed

Revolution

(rpm)

Adjustable speed

Rotation

(rpm)

PBM-20

Three-phase 380 v - 50 hz

4

1-9999

1-999

25-215

50-430

PBM-40

Three-phase 380 v - 50 hz

5.5

1-9999

1-999

20-195

40-390

PBM-60

Three-phase 380 v - 50 hz

7.5

1-9999

1-999

27-174

40-260

PBM-80

Three-phase 380 v - 50 hz

11

1-9999

1-999

27-160

40-240

PBM-100

Three-phase 380 v - 50 hz

11

1-9999

1-999

27-160

40-240



Vertical production type planetary ball mill(3)

Model

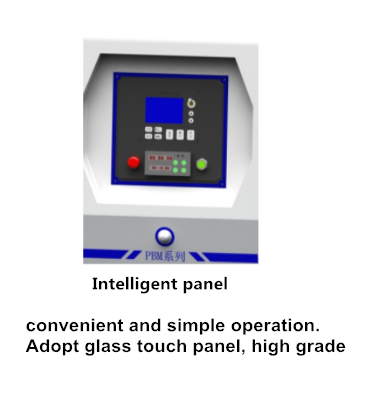

Standard panel(Optional touch-screen version)

Lubrication way

Speed adjustment mode

Equipment reference weight

Equipment reference size

Noise

≤db

PBM-20

Intelligent lubrication

lubricating oil

Frequency control

440

1300*810*950

60db

PBM-40

Intelligent lubrication

lubricating oil

Frequency control

680

1500*850*1050

60db

PBM-60

Intelligent lubrication

lubricating oil

Frequency control

880

1700*950*1150

60db

PBM-80

Intelligent lubrication

lubricating oil

Frequency control

1100

1850*1100*1200

60db

PBM-100

Intelligent lubrication

lubricating oil

Frequency control

1100

1850*1100*1200

60db



Production ball mill










 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
