Laboratory Transparent Acrylic Vacuum Glove Box with Optional Vacuum Flange & Gauge

Laboratory Transparent Acrylic Vacuum Glove Box with Optional Vacuum Flange & Gauge

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-GBT-15B
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

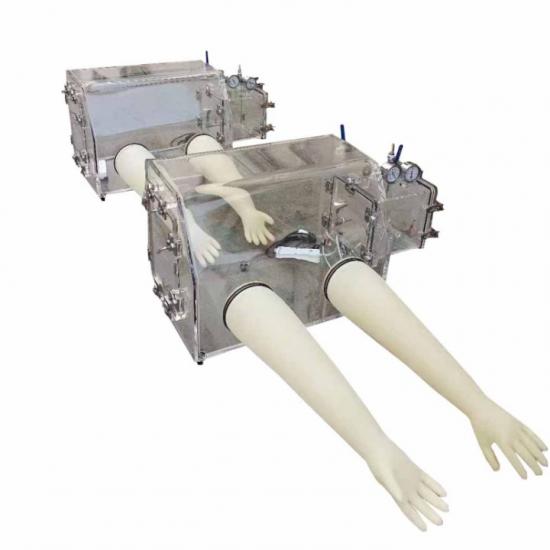

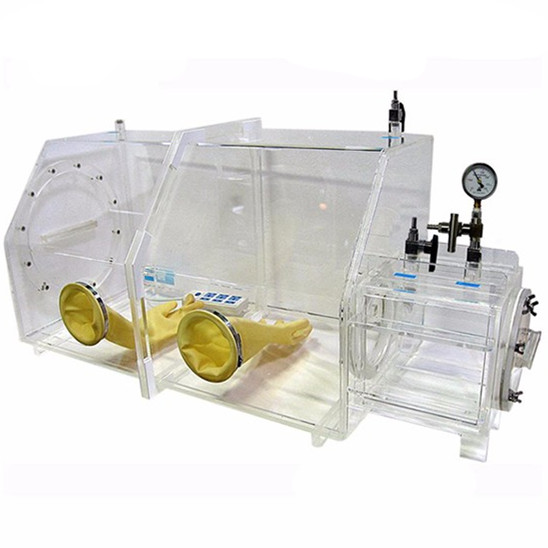

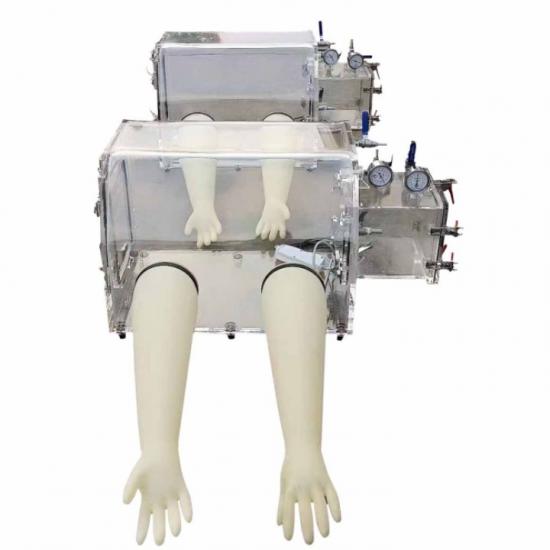

Laboratory Transparent Acrylic Vacuum Glove Box with Optional Vacuum Flange & Gauge



It is mainly composed of main box, transit room and side door. If user has special requirement, it can also be customized and designed according to customer needs. There are 2 glove interfaces. In front of the main Vacuum Glove Box, user can clearly view the box inner situation. There are two vacuum ball valves and one vacuum gauge on the right of the main box. And there are also two vacuum ball valves and one vacuum gauge on the transit room. It can be used according to user needs. The ball valve can be connected with water faucet when needing water or ventilation. Light bulb can be also installed. Transit room means the transition between the main box and outdoor, composed by two sealed doors, two vacuum ball valves and one room. Two doors isolate the main box from connecting with the outdoor, making material putting in and taking out for lab easily.


Main Parameters of Transparent Glove Box

No.

Model No.

Box Size
(mm)

Material

Glass Thickness
(mm)

Size of Transition Cabinet
(mm)

Remarks

1

GBT-10A

740*450*500

Organic Glass
or Acrylic Glass

10

No Transition Cabinet

Isolated from dust, no vacuum

2

GBT-15A

740*450*500

15

240*240*240

Slight vacuum can be pumped, water or oxygen removal system is for option.

3

GBT-30A

740*450*500

30

240*240*240

Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal

4

GBT-10B

1000*500*500

10

No Transition Cabinet

Isolated from dust, no vacuum

5

GBT-15B

1000*500*500

15

240*240*240

Slight vacuum can be pumped, water or oxygen removal system is for option.

6

GBT-30B

1000*500*500

30

240*240*240

Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal

7

GBT-10C

1200*600*600

10

No Transition Cabinet

Isolated from dust, no vacuum

8

GBT-15C

1200*600*600

15

240*240*240

Slight vacuum can be pumped, water or oxygen removal system is for option.

9

GBT-30C

1200*600*600

30

240*240*240

Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal

10

GBT-10D

1200*800*700

10

No Transition Cabinet

Isolated from dust, no vacuum

11

GBT-15D

1200*800*700

15

240*240*240

Slight vacuum can be pumped, water or oxygen removal system is for option.

12

GBT-30D

1200*800*700

30

240*240*240

Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal


Acrylic Glove Box

 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
