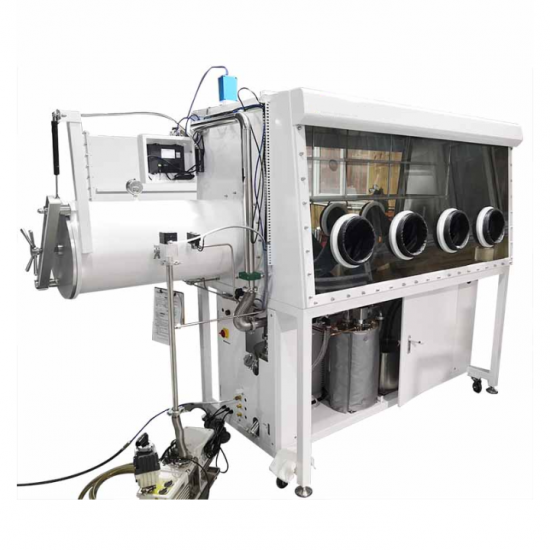

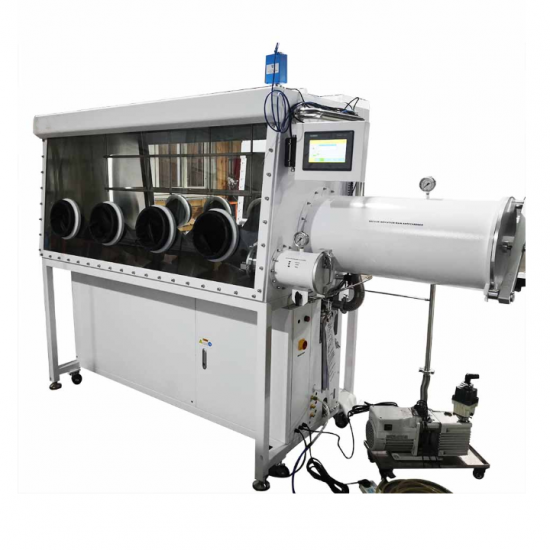

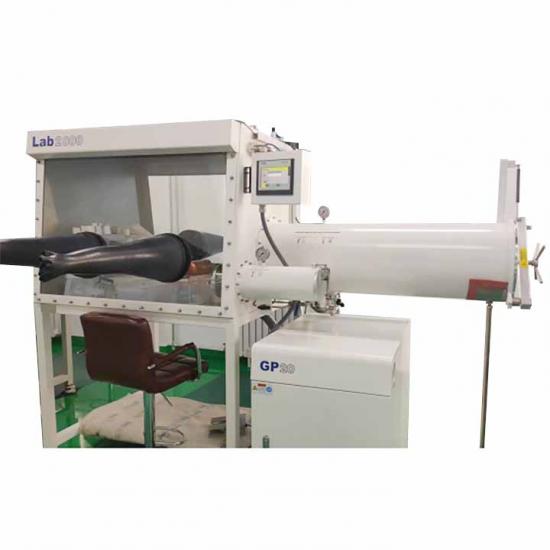

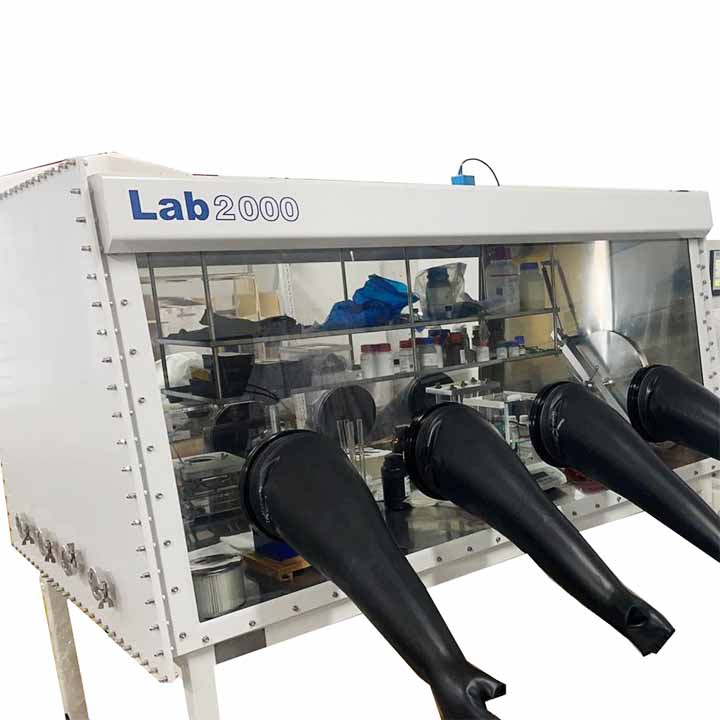

Lab2000 Four Station Double Side Transition Cabin Glove Box with RV12 Vacuum Pump

Lab2000 Four Station Double Side Transition Cabin Glove Box with RV12 Vacuum Pump

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-Lab2000
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

Lab2000 Four Station Double Side Transition Cabin Glove Box with RV12 Vacuum Pump






I. Acceptance criteria:

Under standard conditions, that is, constant temperature of 20-25 oC, relative humidity of 65%, and inert gas source of 99.999%, the circulating water and oxygen indexes of the empty box are all less than 0.1ppm.



II.Main technical indicators and configuration


1. Box

1.1. Dimensions: 1800mm (length) × 900mm (height) × 1000mm (width).

1.2. Material: All stainless steel structure (Type 304), thickness 3mm.

1.3. Filter: Pore size 0.3 microns

1.4. Butyl rubber gloves: imported from the United States, thickness 0.4mm, glove mouth 8 inches, POM glove mouth, caliber 220mm.

1.5. Window: Operation surface with inclined design, 8mm safety tempered glass front window, wear-resistant, anti-corrosion, good light transmission, the sealing ring adopts 3/8 inch thick OMEGA sealing ring.

1.6. It can maintain a certain positive and negative pressure during use (-10mbar-10mbar)

1.7. The box is equipped with anti-reflection lighting energy-saving lamps, and the light is soft.

1.8. The box is equipped with a display board and a 2-layer hanging rack

1.9. There is a multi-hole power terminal board in the box (power supply: 220V±10% 50Hz±10%)

1.10. The cabinet can be set with 3 standard KF-40 ports.

1.11. Leakage rate: ≤0.001vol%/h.

1.12. Steel structure bracket, height 950 mm including casters, installed with swivel casters.


2. Transition cabin

2.1 Large and small transition warehouse (right side)

2.1.1 Shape: Cylindrical (304 stainless steel), connected to the glove box, with a shaft-lock type large transition hatch, which is easy to operate.

2.1.2 Dimensions: diameter 390mm, length 600mm large transition cabin, piston door, sliding tray in the transition cabin, polished, another small transition cabin in the box, specifications: diameter 150mm, length 300mm, manual valve control air extraction and tonic.

2.1.3. Tray: free to move and extend (large transition cabin configuration)

2.1.4. Vacuum degree ≤ 1bar (both large and small right transition cabins are required to be evacuated with display)


3. Control system

3.1. Mode: including self-diagnosis, self-starting characteristics after power failure, with pressure control and self-adaptive functions. LCD display is used for automatic control, cycle control, password protection and vacuum chamber control. The unit control adopts Siemens PLC touch screen.

3.2. Pressure control: control the pressure of the box and transition cabin at a certain set value.

a) The user can arbitrarily set the working pressure range between +12.5 and -12.5 mbar, and the PLC will automatically adjust the box pressure within the set range. The default value for the working pressure range is -1 to +3 mbar.

b) When the box pressure is greater than 12 mbar, the PLC will automatically open the safety valve to release the pressure to protect the gloves, equipment and materials in the box.

c) Use the foot switch to fine-tune the tank pressure.

3.3. Foot pedal: can control the pressure of the glove box, easy to operate.


4. Circulation system (including purification and regeneration system)

4.1. German BASF, American UOP purification material, German Baode valve. The host system integrates modular design, fully automatic electronically controlled gas circuit solenoid valve group, PLC control, circuit, circulating pump, purification, and display integrates an independent purifier to form a compact and simple system.

4.2. Control: Water and oxygen are controlled at less than 1PPm

4.3. Adjustment device: through PLC touch adjustment (heating, evacuation, purification, regeneration), the whole process does not require human monitoring except for 2.5 hours of ventilation.

4.4. Working gas: He.N2/or Ar gas (gas circulation)

4.5. Circulation fan: 0-100m³ high-speed variable frequency fan, microprocessor controlled, stainless steel device that has been pressure tested.

4.6. Purification column: single purification column, imported purification material German BASF deaerator material 5kg, American UOP high-efficiency water absorbing material 5kg, extremely high lifespan, ensuring long-lasting purification ability of the product during use. The water removal capacity is 2.2㎏ and the oxygen absorption capacity is 63L.

4.7. Purge valve: fully automatic electric valve.

4.8. Filter: H13 high-efficiency filter with 0.3 micron pore size filter mesh that meets HEPA standard.

4.9. Regeneration: It is used to re-use and activate the purification system; regeneration requires a mixture of helium/H2, nitrogen/H2 or argon/H2, of which H2 accounts for 10%.


5. Display system

Germany SIEMENS, the unit control adopts Siemens PLC touch screen. Chinese and English bilingual can be switched.


6. Water analyzer, (imported from abroad) Brand material: British MICHELL / (according to the customer's use environment) non-domestic or domestic assembly, third-party data to ensure credibility.

1) Measuring range: 0-1000ppm

2) Accuracy: ±1% ppm

3) Display: The output of the analyzer is connected to the PLC, the detection value is displayed on the touch screen, and the alarm value can be set.

4) Control: The gas circulation system can be controlled according to the user's setting to realize the circulation drop.

5) Environment: -10℃-50℃


7. Oxygen analyzer, (imported from abroad) Brand material: American AVCRAY (according to the customer's use environment) non-domestic or domestic assembly, third-party data to ensure credibility.

1) The measurement range can be set: 0-1000, ppm

2) Environment: -10℃-50℃

3) Accuracy: ±1% ppm

4) Installation position: The oxygen sensor is installed on the box. No matter whether the gas is circulating or not, the oxygen sensor continuously detects the atmosphere in the box and displays the oxygen content in the glove box.

5) Sensor: Electrochemical material battery, which has the advantages of accurate zero point, small drift, avoiding the easy corrosion of other battery materials; low replacement cost (only oxygen battery is replaced).

6) Display: The output of the analyzer is connected to the PLC, the detection value is displayed on the touch screen, and the alarm value can be set.

Control: The user can select the automatic cycle function to maintain the oxygen content in the glove box within the user's specified range.


8. Vacuum system

Increase the vacuum pump start and stop time control. The vacuum pump is a British Edwards vacuum pump, model RV12, with a flow rate of 12m3/h and an ultimate vacuum of 2x10-3 mbar. The transition cabin can be evacuated separately, and can be controlled independently at any time. (imported from abroad)


9. Automatic cleaning of the box

Automatic gas control electroplating board; the gas in the box is automatically cleaned by the user to set the cleaning time, and then touch the start button on the touch screen, the system will start cleaning the box, and it will automatically stop when the set time is reached.


10. Organic solvent adsorption system

In order to prevent the influence of organic solvents on the purification column, a solvent column is connected in series to the glove box system. The media are mainly high-quality and high-efficiency activated carbon and activated alumina that prevents the formation of hydrofluoric acid. The filling capacity of the organic solvent adsorption system is 7KG, and there are KF40 interfaces on the top and bottom of the column, which is convenient for material change, and users can change the material by themselves.


11. Equipment working conditions: (provided by the user)

1.0. Power supply: two-phase three-wire AC220V, power ≥1Kw;

1.1. The laboratory must have an independent ground wire: <3Ω, it is recommended to use a flat copper wire of ≥10mm2 for the connection from the equipment to the ground wire;

1.2. Water supply: none;

1.3. Relative humidity: <75%;

1.4. There is no large amount of dust in the room, no corrosive, flammable and explosive gas;

1.5. Equipment area: length × width: 3200mm × 1200mm



III.Main configuration

No

Configure

Unit

Qty

Manufacturer/Brand

Remark

1

Box

Pcs

1

TMAXCN

304 stainless steel thickness 3mm

2

Transition cabin

Pcs

1

TMAXCN

304 stainless steel

3

Control System

Pcs

1

Germany SIEMENS Omron electronic devices, etc.

Import assembly

4

Circulation system (including purification and regeneration system)

Pcs

1

German BASF, American UOP purification material, German Baode valve

Import assembly

5

Display system

Pcs

1

SIEMENS(Germany)

Import

6

Gloves

Pair

4

United States

Import

7

Pipe interface

Pcs

1

French Rocole(France)

Import

8

Pressure gauge

Pcs

2

WIka(Germany)

Import

9

PLC Water Analyzer

Pcs

1

Michell(UK)

Import

10

PLC oxygen analyzer

Pcs

1

AVCRAY(USA)

Import

11

Vacuum pump

Pcs

1

RV12

Import

12

Organic solvent adsorption

Pcs

1

TMAXCN

304 stainless steel



Glove Box





 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
