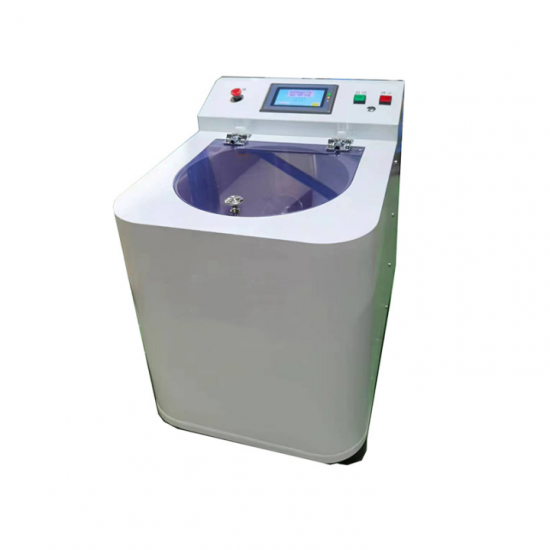

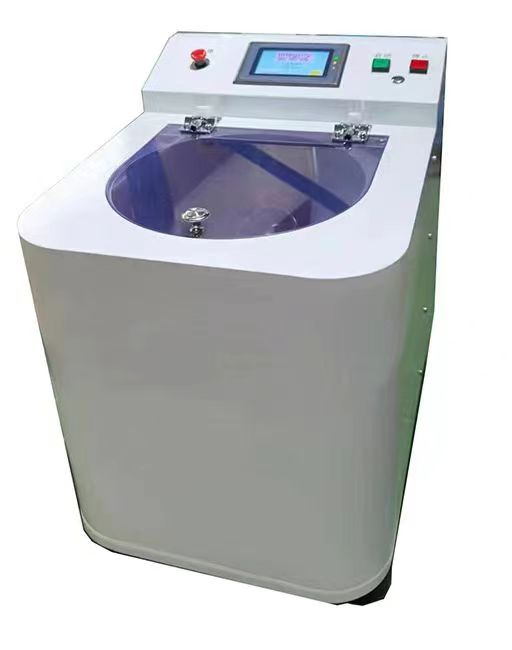

Model: XHH-900S

Application: Suitable for dispersion, mixing and defoaming of multi-component materials (silica gel, multi-component epoxy resin, etc.).

Standard container: 900ML(HDPEφ104×124) or 300ML (HDPEφ78 *90); 150ML syringe below 55CC

Maximum processing capacity: ≤1000g; ≤450mL;

Revolution: 300~2000rpm stepless speed regulation, adjust 1rpm according to the actual needs of users.

Rotation: constant speed ratio 0.76;

Set time: 0~3000S x 5(five steps in total), accuracy 1s;

Parameter storage capacity: 5 groups;

Bearing: Japan NSK bearing;

Control system: man-machine dialogue, Chinese interface, touch screen operation;

Balance adjustment: double cup configuration balance;

Transmission mode: gear drive;

Working principle: mass rotation without wing type centrifugal gravity mode;

Alarm device: when the upper cover is not covered, there will be an alarm;

Safety protection: the upper cover is locked during operation, and the upper cover stops working when it is opened;

Applicable temperature and humidity: 10~40 ℃; 20~80%RH (no foggy moisture, can);

Voltage: AC220V±5%; 1-Phase; 50~60Hz;

Power: The rated power of the host is 500w

Size: L600×W500×H660mm;

Weight: 45Kg.

Equipment features: rotation and revolution movement up to nearly 400G centrifugal gravity, strong dispersion and defoaming; There is no spiral blade to achieve mixing and dispersion in the container; No need to clean, will not pollute the material; Does not damage the material (especially fibrous material) properties; Man-machine interaction, easy operation; Ultra-small, ultra-light, ultra-quiet optimized design.
