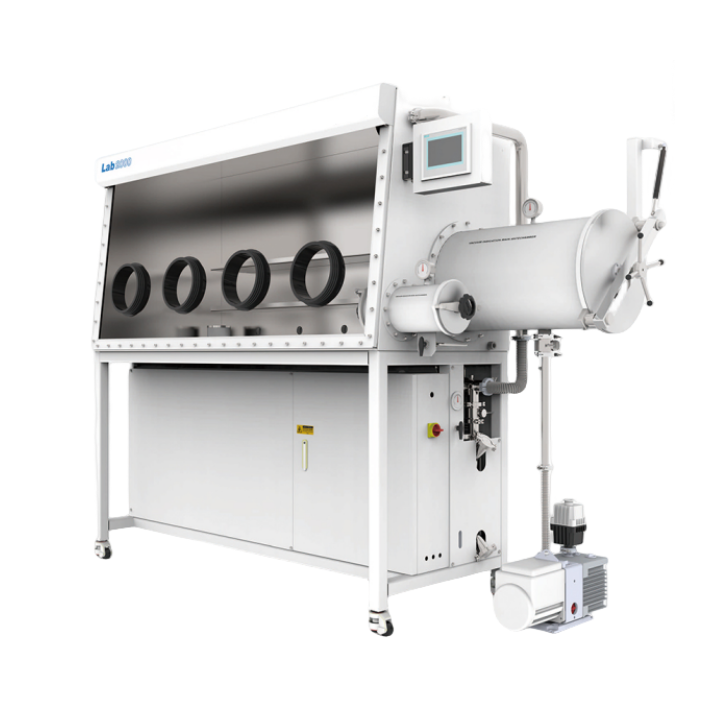

Double Station Purification Single Side Vacuum Glovebox with A Length 600mm Large Transition Chamber

Double Station Purification Single Side Vacuum Glovebox with A Length 600mm Large Transition Chamber

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-Lab1800
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

Double Station Purification Single Side Vacuum Glovebox with A Length 600mm Large Transition Chamber


Vacuum Glovebox



The Technical Scheme of Lab2000

Acceptance criteria:

Under standard conditions, that is, 20-25  constant temperature, 65% relative humidity, and 99.999% inert gas source, the circulating water and oxygen indicators of the empty tank are all less than 1ppm.



Main technical indicators and configuration

1. Cabinet

1.1. Dimensions: 1800mm (length) × 900mm (height) × 750mm (width)

1.2Material: All stainless steel structure (Type 304), thickness 3mm.

1.3Filter: pore size 0.3 micron

1.4Butyl rubber gloves: imported from the United States with a thickness of 0.4mm, a glove opening of 8 inches, a hard aluminum alloy glove opening (after anti-corrosion treatment, anodized aluminum), and a diameter of 220mm.

1.5Window: The operation surface with inclined design is made of 8mm safety tempered glass front window, which is wear-resistant, corrosion-resistant, and has good light transmission. The sealing ring adopts 3/8 inch thick OMEGA sealing ring.

1.6It can maintain a certain positive and negative pressure (-10mbar-10mbar) during use

1.7The cabinet is equipped with anti-reflection lighting energy-saving lamps, and the light is soft.

1.8There are 2 layers of shelves for display boards in the box

1.9.  There is a porous power terminal board in the box (power supply: 220V±10% 50Hz±10%)

1.10. The cabinet can be equipped with 5 standard KF-40 interfaces.

1.11.  Leakage rate: ≤0.001vol%/h.

1.12.  The steel structure bracket, including casters, is 950 mm high, and is equipped with universal casters.



2. Transition cabin

2.1 Large and small transition chambers (right side)

2.1.1. Shape: Cylindrical (304 stainless steel), connected to the glove box, with a shaft lock type large transition hatch, easy to operate.

2.1.2. Size: diameter 360mm, length 600mm large transition chamber, piston door, there is a sliding tray in the transition chamber, polished, and a small transition chamber is set in the box, the specifications are: diameter 150mm, length 300mm, manual valve control air extraction and air supply .

2.1.3. Tray: free to move and extend (large over-chamber configuration)

2.1.4.  Vacuum degree ≤ 1bar (both large and small right transition cabins require vacuuming with display)



3. Control system

3.1. Method: Including self-diagnosis, self-starting after power failure, with pressure control and self-adaptive functions. LCD display is used for automatic control, cycle control, password protection and vacuum chamber control. The unit control adopts Siemens PLC touch screen.

3.2. Pressure control: control the pressure of the tank and transition chamber at a certain set value.

a) The user can arbitrarily set the working pressure range between +12.5 and -12.5 mbar, and the PLC will automatically control the pressure of the box within the set range. The default value for the working pressure range is -1 to +3 mbar.

b) When the box pressure is greater than 12 mbar, the PLC automatically opens the safety valve to release the pressure to protect the gloves, equipment and materials in the box.

c) Use the foot switch to fine-tune the tank pressure.

3.3. Foot pedal: It can control the pressure of the glove box and facilitate operation.



4. Circulation system (including purification regeneration system)

4.1. German BASF, American UOP purification materials, German Baode valves. The host system integrates a modular design, fully automatic electronically controlled air circuit solenoid valve group, PLC control, circuit, circulation pump, purification chamber, and display are integrated into an independent purifier, forming a compact and simple system.

4.2. Control: water and oxygen are controlled at less than 1PPm

4.3. Adjustment device: through PLC touch adjustment (heating, evacuation, purification, regeneration) the whole process except 2.5 hours of ventilation without human monitoring.

4.4. Working gas: He.N2/ or Ar gas (gas cycle)

4.5. Circulation fan: 0-100m³ high-speed variable-frequency fan, microprocessor-controlled, pressure-tested stainless steel device.

4.6. Purification column: single purification column, imported purification material BASF oxygen removal material 5kg from Germany, UOP high-efficiency water-absorbing material from the United States 5kg, extremely high lifespan, ensuring long-lasting purification ability of the product during use by users. The water removal capacity is 2.2kg and the oxygen absorption capacity is 63L.

4.7. Purification valve: fully automatic electro-pneumatic valve.

4.8. Filter: A high-efficiency filter with a 0.3-micron pore size filter that meets HEPA standards.

4.9. Regeneration: It is used to re-use the purification system to activate it; regeneration requires a mixed gas of helium/H2, nitrogen/H2 or argon/H2, of which H2 accounts for 10%.

4.10. The regeneration gas enters the purification column through the advanced flow meter.



5. Display system

Germany SIEMENS, unit control adopts Siemens PLC touch screen. Chinese and English bilingual can be switched.



6. Water analyzer, (imported from abroad) Brand material: British MICHELL/ (determined according to the customer's use environment)

Non-domestic or domestic assembly, third-party data guarantee credibility.

1) Measuring range: 0-1000ppm

2) Accuracy: ±1%ppm

3) Display: The output of the analyzer is connected to the PLC, the detected value is displayed on the touch screen, and the alarm value can be set.

4) Control: The gas circulation system can be controlled according to the user's settings to achieve circulation reduction.

5) Environment: -10℃—50℃



7. Oxygen analyzer, (imported from abroad) Brand material: American AVCRAY (determined according to the customer's use environment)

Non-domestic or domestic assembly, third-party data guarantee credibility.

1) Measuring range can be set: 0-1000, ppm

2) Environment: -10°C - 50°C

3) Accuracy: ±1% ppm

4) Installation position: The oxygen sensor is installed on the box body. No matter whether the gas circulates or not, the oxygen sensor continuously detects the atmosphere in the box and displays the oxygen content in the glove box.

5) Sensor: Electrochemical material battery, which has the advantages of accurate zero point, small drift, and avoids easy corrosion of other battery materials; low replacement cost (only oxygen battery is replaced).

6) Display: The output of the analyzer is connected to the PLC, the detected value is displayed on the touch screen, and the alarm value can be set.

7) Control: The user can choose the automatic circulation function to maintain the oxygen content in the glove box within the specified range of the user.



8. Vacuum system

Increase the start and stop time control of the vacuum pump. The vacuum pump is an Edwards vacuum pump from England, model RV12, with a flow rate of 12m3/h and an ultimate vacuum of 2x10-3 mbar. The transition chamber can be evacuated separately and can be controlled independently at any time. (Imported from abroad)



9. Automatic cleaning of the cabinet

Automatic air control electroplating plate; automatic gas cleaning function in the box The user sets the cleaning time, and then touches the start button on the touch screen, the system will start cleaning the box, and it will automatically stop when the set time is reached.



10. Organic solvent adsorption system

In order to prevent the influence of organic solvents on the purification column, a solvent column is connected in series to the glove box system. The medium is mainly high-quality and efficient activated carbon and activated alumina to prevent the formation of hydrofluoric acid. The filling capacity of the organic solvent adsorption system is 7KG, and there are KF40 interfaces on the upper and lower sides of the column, which is convenient for refueling, and the user can refuel by himself.



11. Equipment working conditions: (provided by the user)

1.0. Power supply: two-phase three-wire AC220V, power 1.5Kw;

1.1. The laboratory must have an independent ground wire: <3Ω, it is recommended to use a flat copper wire of ≥10mm2 for the connection from the equipment to the ground wire;

1.2. Water supply: no;

1.3. Relative humidity: <75%;

1.4. There is no large amount of dust in the room, no corrosive, flammable and explosive gases;

1.5. Equipment covers an area: length × width: 2500mm × 1200mm



Main configuration

Serial number

Configuration



Unit

Quantity

Manufacturer/Brand

Remark

1

Cabinet



Set

1

TMAXCN

304 stainless steel thickness 3mm

2

Transition cabin



Set

1

TMAXCN

304 stainless steel

3

Control System

Set

1

German SIEMENS Omron electronic devices, etc.

Import assembly

4

Circulation system (including purification regeneration system)

Set

1

German BASF, American UOP purification materials, German Baode valves

Import assembly

5

Display system

Set

1

Germany SIEMENS

Import

6

Gloves

Pair

2

U.S.

Import

7

Pipe interface

Set

1

Legola

Import

8

Pressure gauge

Set

1

WIka, Germany

Import

9

PLC water analyzer

Set

1

Michell, United Kingdom

Import

10

PLC oxygen analyzer

Set

1

American AVCRAY

Import



11

Vacuum pump

Set

1

RV12

Import

12

Organic solvent adsorption

Set

1

TMAXCN

304 stainless steel

13

Oil mist filter

Set

1

Vacuum pump matching

Free installation










 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
