Item No.:
TMAX-HY-MFPayment:
L/C, T/T, Western Union, Credit Cards, PaypalShipping port:
Xiamen PortLead Time:
5 DaysCertificate:
CE, IOS, ROHS, SGS, UL CertificateWarranty:
Two years limited warranty with lifetime technical supportContinuous And Stable High Temperature Microwave Muffle Furnace Optional Heating Space
Summarize

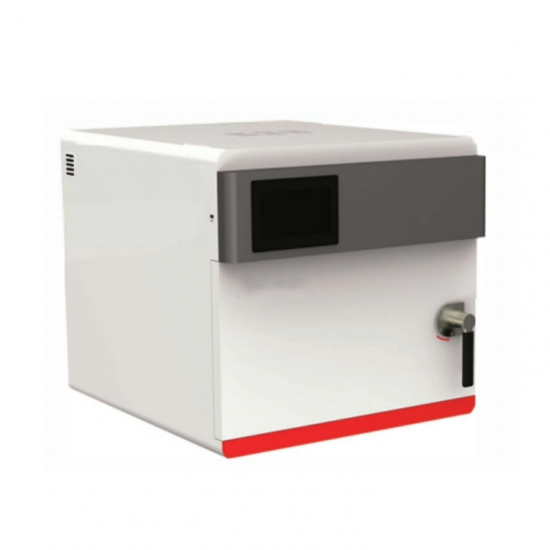

HY-MF microwave high temperature Muffle furnace is a standard microwave high temperature equipment for laboratory, which is suitable for microwave synthesis, ashing, expanding, heat treatment, roasting, calcination and sintering under air atmosphere.
Main feature
1) Industrial brand microwave source, microwave output power stepless adjustable, to ensure continuous and stable long-term operation of equipment;
2) Using the original thermal insulation and crucible structure, energy saving and high efficiency, uniform temperature field, no pollution to materials;
3) Material heating speed block, good uniformity, can greatly improve the experimental efficiency;
4) 1600℃ working temperature, to meet the needs of various experiments;
5) Door open and power off, resumption delay, professional microwave shielding technology, to ensure safety.
Technical parameter
|
Model Parameter |
HY-MF1516 |
HY-MF3016 |
|
Voltage |
220±10V，50Hz |
220±10V，50Hz |
|
Microwave output power |
0.01~1.40kW, continuously adjustable (Panasonic) |
0.01~2.80kW, continuously adjustable (Panasonic) |
|
Heating space (L x W x H) |
110x110x70mm |
140x140x100mm |
|
Microwave frequency |
2.45GHz |
|
|
Operating temperature |
≤1600℃ |
|
|
Temperature measurement method |
Thermocouple/infrared |
|
|
Control mode |
Programmable Logic Controller (Mitsubishi)+ Touch screen (Kunlun Mode) |
|
|
Control program |
Can set multi-stage process parameters, with data storage and export functions, a variety of control modes; One-button oven |
|
|
Anti-microwave leakage |
Microwave leakage level <1mW/cm2 |
|
|
Safety protection |
Furnace door shutting switch, door open and power off, re-power delay, over-temperature alarm |
|
|
Main body (L x W x H) |
About 750x550x650mm |
About 850x650x750mm |
Consumables and optional accessories
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
