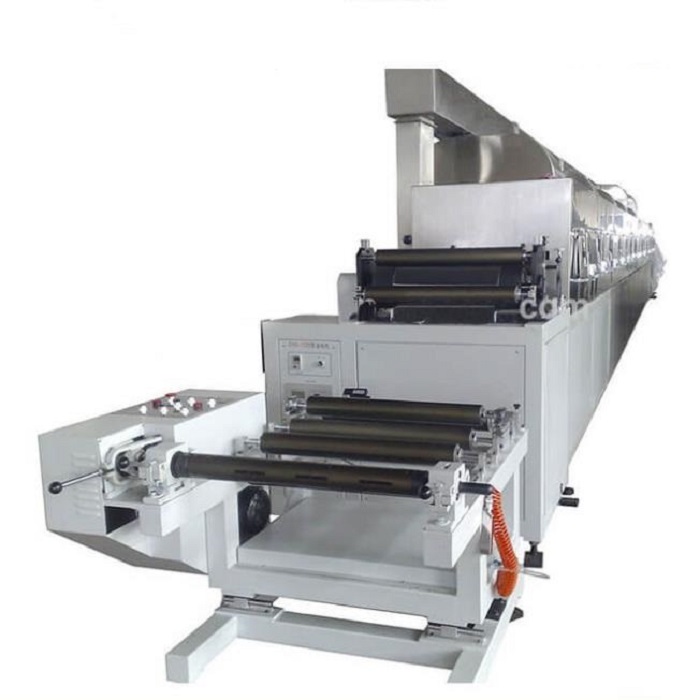

Automatic Roll To Roll Film Coating Machine With Drying Oven

Technical Parameters

The roll to roll coating machine TMAX-DYG-132MS is a single face continuous and Intermittent coating machine mainly used for Slurry drying process of lithium battery electrode coating. The battery coating machine adopts continuous and Intermittent coating mode, is mainly used for lithium battery pilot scale production line.

Model	Lithium ion Battery Coating Machine TMAX-DYG-132MS
Source voltage	AC 220V/110V, 50HZ/60HZ
Power	40000W
Suitable material thickness	Aluminum foil : 0.01-0.03mm Copper foil : 0.006-0.020mm
Max electrode width	400mm
Warranty	One Year limited warranty with lifetime support
Mechanical tape speed	1-6m/min
Coating speed	0.6～8m/min, adjustable
Air compression	0.5-0.7MPa
Coating mode	Single face continuous and intermittent coating
Equipment length	8.5M (3M*2Section oven+2.5M)
Equipment function	1 PLC intelligent control equipment, has a continuous convex point easily    eliminate clearance 2 Use hot air circulation heating mode, high thermal efficiency 3 Coating method : continuous and intermittent coating    3.1 The first face automatic fixed-length block coating    3.2 The second face automatic tracking the first face composite coating    3.3 Reverse coating interval length distance 4 Coating length : More than 50mm can set clearance or continuous coating    The minimum coating length : 8mm, Minimum interval length : 5mm,    The minimum track length : 50mm 5 Double-sided dry thickness accuracy : ≤±0.003mm   5.1 Both the front and coated alignment error : ≤±0.5mm   5.2 Each length error : ≤±0.5mm   5.3 Each paragraph width error : ≤±0.5mm   5.4 Trailing : ≤±0.5mm 6 Volume release tension can be adjusted continuously : 0～25N 7 Precision rectification controller : ±0.2mm(Re) 8 Core winding diameter : 3 inches, USES the gas rose axis, Max 300kg 9 Baking mode :    9.1 Hot wind drying, hot wind circulation,    9.2 Electric heating,   9.3 Hot air volume can be adjusted, air volume can be adjusted

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
