Automatic Grooving Machine for Cylindrical Battery Cases

Automatic Grooving Machine for Cylindrical Battery Cases

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna





  • Item No.:

    Tmax-grooving003
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Product origin:

    China
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

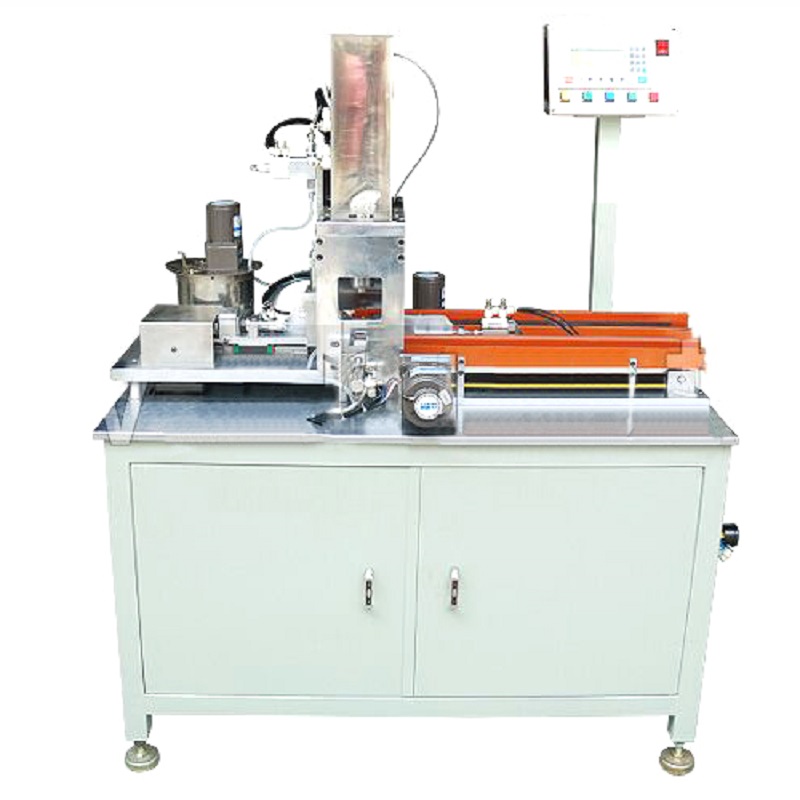

Automatic Grooving Machine for Cylindrical Battery Cases




It is an auto grooving machine for cylindrical battery cases. It provides a continues workflow for case batch loading - neck grooving - case unloading without dedicated labor.


Advanced Features:

·        Efficient batch loading/unloading mechanism with case feeding conveyor

·        Horizontally positioned grooving blade ensures the most stable and accurate grooving

·        Micrometer assisted grooving depth & height adjustment

·        Ability to compensate the axial deformation of a cylindrical casing

·        User-friendly human-machine interface with PLC touch screen control

·        Floor-Stand enclosure with transparent front & side openable windows allow clear process monitoring and adjustment



Specifications:

Working Voltage

110/220V AC, 50/60Hz

Max. Power Consumption

1KW

Air Pressure

0.5 MPa~0.8Mpa is required

Compatibility



Standard grooving capability for 18650 case
Note: CR123 / 18650 / 26650 / 32650 / AA is available upon request, please contact us for more details.

Control



User-friendly HMI with PLC touch screen control ensures easy program setup

Grooving Dimensions



Micrometer assisted grooving depth & height adjustment

·         Depth: 1 - 2.0 mm

·         Width: 1 - 1.5 mm

Grooving Accuracy

+/- 0.1 mm

Grooving Blade Life Span

>1 million times

Grooving Force

6kgf/cm^2

Compression Ratio

Percentage in height: 80%

Productivity



·         Material feeding conveyor is able to load upto 22 pcs per batch

·         30 pieces per minute

Product Dimensions

W1080mm*D660mm*H1200mm

Net Weight

1000lbs

Warranty



·         One year limited with lifetime support

·         Rusting and damage due to improper storage condition or maintenance are not covered by warranty

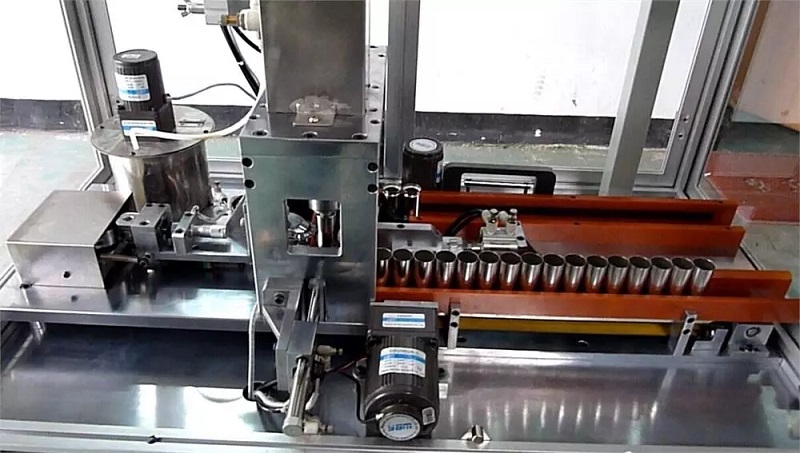

Cylinder Cell Grooving Machine

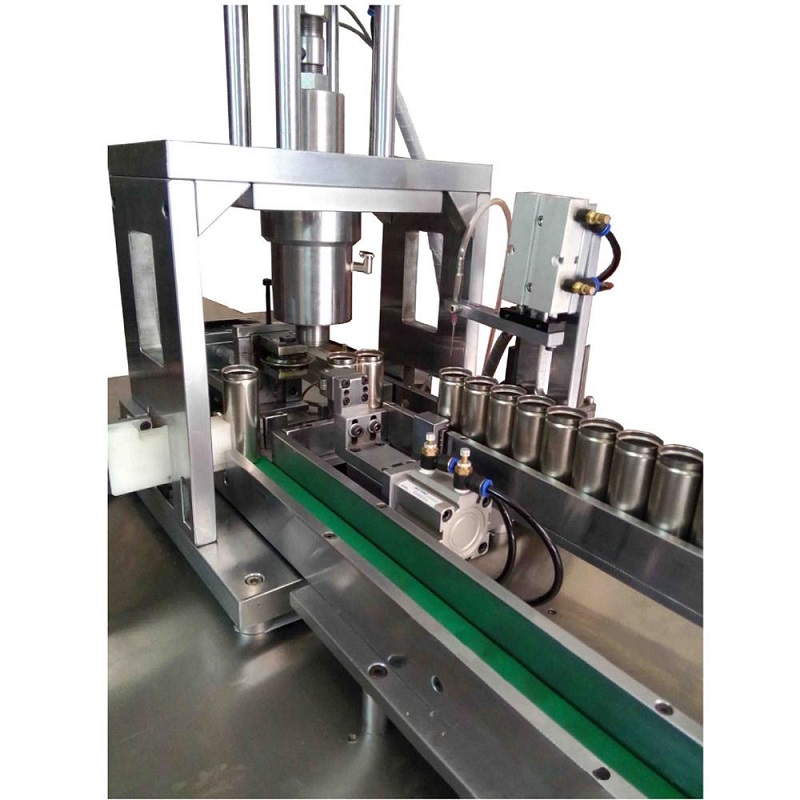

Cylindrical Cell Grooving Machine
