Automatic 5 channel Sorting Machine for Prismatic Battery IR and Voltage Testing

Application :

This equipment is mainly used for sorting and testing the voltage and internal resistance of square shell battery.



Equipment Composition:

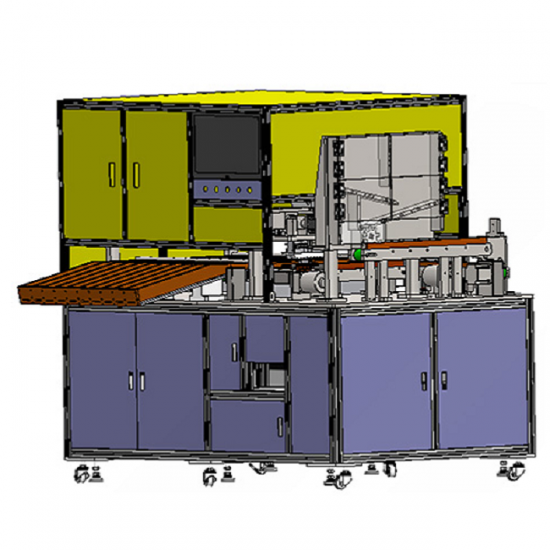

The equipment provided by Party B consists of electrical, mechanical and chassis parts. The main components are divided into feeding structure, testing structure, sorting structure, etc.

Comprehensive performance of equipment.



Basic Parameters:

Equipment efficiency	20 ~ 25ppm
Equipment moving rate	≥ 95%
Instrument internal resistance detection accuracy	± 0.5% rdg display resolution 0.01 milliohm
Instrument voltage detection accuracy	± 0.05% rdg display resolution: 0.1 mV;
Internal resistance detection repetition error	< 1 milliohm  (AC internal resistance detection method)
Voltage detection repetition error	< 1 mV
Input power supply	AC220V / 50Hz , 1KW
Size	L * W * H = 1400 * 700 * 1600mm



Main Components:

1. Tester: HK3561 high precision built-in tester

2. Linear guide rail: HIWIN / TBI

3. PLC: embedded motion control system

4. Motor: high performance stepping motor, Beifu / research control

5. Cylinder: Yadeke / Xingchen

6. Solenoid valve: Yadeke / Xingchen

7. Sensor: Omron / Bochuang



General Configuration:

1. Appearance color of equipment: standard color warm gray 1C.

2. Equipment noise: ≤ 65dB.

3. The equipment complies with the national safety standards for electromechanical equipment, and there is no obvious or potential design safety hazard.

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
