Item No.:
TMAX-800L-DMPayment:
L/C, T/T, Western Union, Credit Cards, PaypalShipping port:
Xiamen PortLead Time:
5 DaysCertificate:
CE, IOS, ROHS, SGS, UL CertificateWarranty:

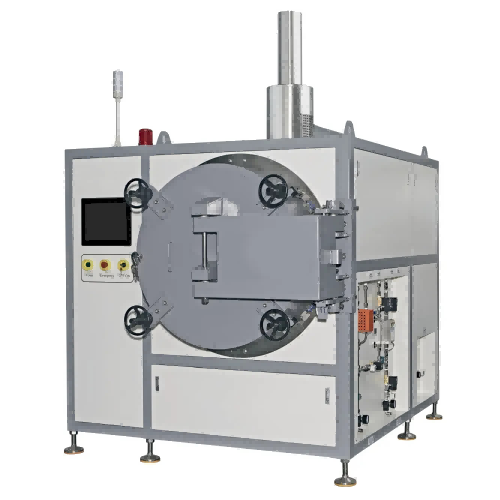

Two years limited warranty with lifetime technical support800L 110 to 140C Low Temperature Oxalic Acid Catalytic Debinding Furnace
Introduction
Catalytic debinding for conventional active metal materials that are easy to be oxidized, which is more energy-saving, safer operation environmental-friendly, and the exhaust gas can be directly discharged.
Specification
Model No: 800L-DM
Working temperature: 110-140°C
Dimension: L2830xW1940xH2760mm
Available working size: L1275xW527xH447mm
Chamber dimension: ф850x 1452 mm
Standard cycle ti: 4-6 h
Oxalic acid consumptio: 150-300 g/h
Acid feeding mode: Continuous controlled acid feeding
Nitrogen consumption: 3.5-4.5 m3/h
Total weight: 2300 kg
Feeding mode: By transfer cart
Combustion mode: Electrothermal combustion
Exhaust gas: CO2and H2O(Non-pollution)
Installation power: 40.7KW
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
