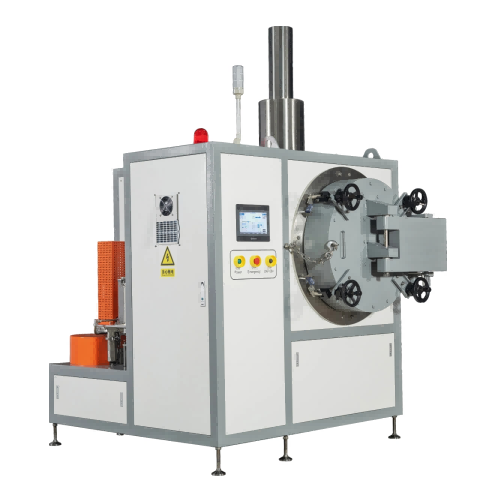

400L Environment Friendly Energy Saving Catalytic Debinding Furnace Using Oxalic Acid

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-400L-0A
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

400L Environment Friendly Energy Saving Catalytic Debinding Furnace Using Oxalic Acid

Introduction

Catalytic debinding for conventional active metal materials that are easy to be oxidized, which is more energy-saving, safer operation environmental-friendly, and the exhaust gas can be directly discharged.

Specification

Model No: 400L-0A

Working temperature: 110-140°C

Dimension: L2046xW1769xH2718mm

Available working size: L1005x W421x H414 mm

Chamber dimension: φ700x 1202 mm

Standard cycle ti: 4-6 h

Oxalic acid consumptio: 150-300 g/h

Acid feeding mode: Continuous controlled acid feeding

Nitrogen consumption: 3.5-4.5 m3/h

Total weight: 2000 kg

Feeding mode: By transfer cart

Combustion mode: Electrothermal combustion

Exhaust gas: CO2and H2O(Non-pollution)

Installation power: 32.3KW

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
