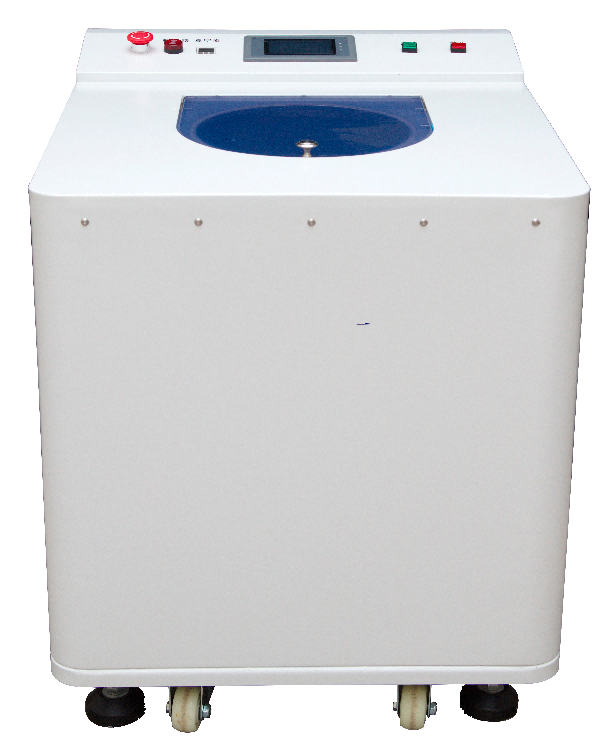

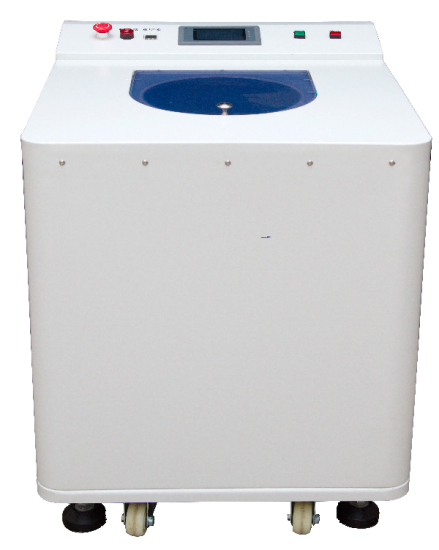

3000ml Vacuum Mixing Defoaming Machine with Adjustable Rotation and Revolution Speed Ratio

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-ITT- 3000SS
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

3000ml Vacuum Mixing Defoaming Machine with Adjustable Rotation and Revolution Speed Ratio

Overview:

Name	Vacuum Mixing Defoaming Machine with Adjustable Rotation and Revolution Speed Ratio
Equipment model	TMAX-ITT- 3000SS
Container capacity	3000ml x 2 cups
Optimal capacity of the mixture	500~1500mlx 2 cups
Operating method	Human-computer interaction interface + button start
Orbital speed and rotational speed	Rotate at 100 - 1500 RPM, self-rotation and rotation speed ratio is 50% - 130%
Electrical appliance (2-year warranty)	Drives: ABB PLC: OMRON or Mitsubishi Relays: IDEC and Quan Electrical

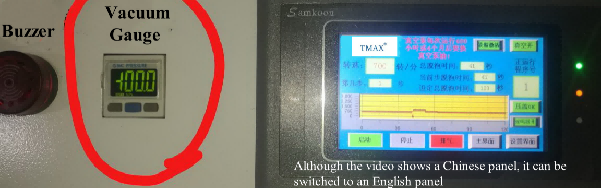

Vacuum gauge	Panasonic vacuum gauge provides an objective and accurate display of vacuum level.
Vacuum pump	The German-made Small Diamon series vacuum pump is equipped with a forced lubrication pump. It provides adequate lubrication, has reliable performance, low noise, and is compatible with our company's unique 4-stage filtration system, meeting the requirements of the cleanroom.
Spindle	S136 mirror surface steel sealing undergoes position quenching at HRC 58-60°, and the sealing ring position is mirror surface ground.
Sealing ring	The polymer graphene sealing ring of DuPont Company in the United States is extremely wear-resistant and can maintain long-term high vacuum.
Swing arm	The imported aviation magnesium-aluminum 7075 material from the United States is processed by an overall machining center with an error of ±0.02, and the size remains stable over a long period. The modular structure ensures high interchangeability, making maintenance and repair convenient.
Transmission	Using spiral bevel gears for transmission, the operation is smooth, the noise is low, and the lifespan is long.
Storage program	Five storage programs (each program can have 5 steps set)
Protection	Door cover, malfunction, overload
Power	Single-phase: ≤ 3.5 KW, 220V, 16A
Net weight	180KG
Shape / Appearance	L800×W670×H820mm
After-sales service	The entire machine is covered by a one-year warranty and lifetime maintenance! The costs incurred during the warranty period will be borne by our company.

Vacuum Stirring Defoaming Machine:

High vacuum degree, long service life (a machine that is well maintained and serviced with regular oil replacement within 5 years will maintain a vacuum degree of no less than 5%, the vacuum degree should be maintained below -95 Kpa, the more negative the vacuum degree, the higher it is),

Easy maintenance: The overall material processing of the rotating arm has strong interchangeability, it is easy for customers to replace parts themselves, and they can also send the parts back to our company for replacement. After replacing the parts, the effect is as good as that of a new machine.

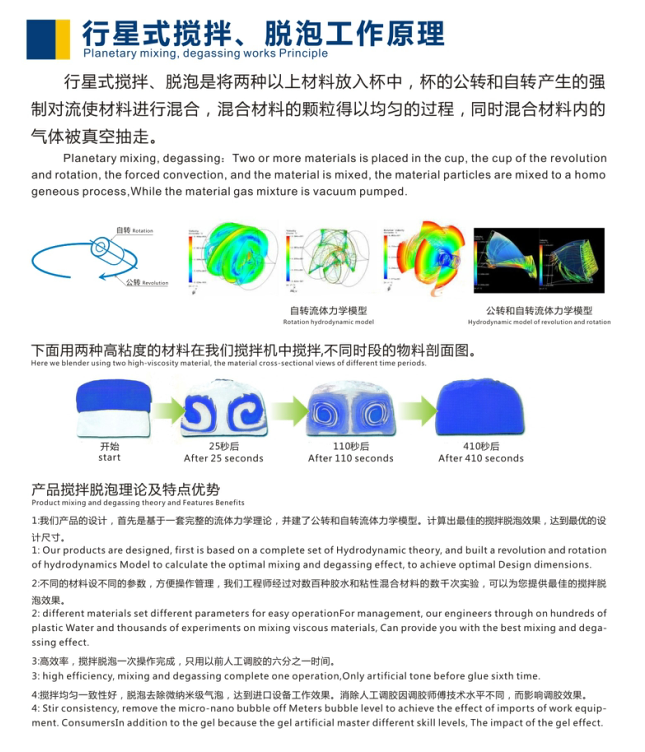

Introduction to the Features of the Stirring and Defoaming Machine

Main shaft: Made of Swiss S136 mirror finish tool steel, after multiple heat treatments, the overall hardness reaches HRC 62 degrees. The shaft is fully ground, and the total runout is no more than 1 micrometer. The sealing surface is further mirror ground to achieve a surface roughness of 0.02 um mirror effect, with an extremely low friction coefficient, and the self-maintained wear resistance is very high, causing minimal wear to the sealing ring, achieving ultra-long life and high sealing performance. This is one of the reasons why many of our customers still maintain a negative pressure of -98 Kpa or above even after using our equipment for several years.

Sealing ring: Made of ultra-maintainable sealing rings from Bayer Company of Germany. The wear resistance can reach 40 M/S linear speed. The linear speed of our equipment is only 4 M/S at 2000 revolutions. The pressure can withstand 20 KG/c㎡. This is the second reason why many of our customers still maintain a negative pressure of -98 Kpa or above even after using our equipment for several years.

Vacuum Pump: This pump is a modified pump with international advanced technology, featuring forced oil circulation lubrication. It has excellent lubrication, low wear, and long lifespan. This is one of the reasons why many of our customers still maintain a negative pressure of over -98 Kpa even after using it for several years. This oil pump has obtained a national patent (Patent Number: ZL2012.2.0084434.0).

Gear: It adopts the structure of automotive spiral bevel gears, ensuring smooth operation, low noise, and long lifespan.

Arm: It uses an integral arm, which is entirely manufactured from imported American aviation magnesium-aluminum 7075. This ensures the accuracy and long-term stability of the product, with a center error no greater than ±0.02. It has high interchangeability, and the arms of the same model can be interchanged arbitrarily, making maintenance convenient.

ITT-3000SS Configuration List
Component Name	Brand
Touch Screen	SamKoon
Programmable Logic Controller (PLC)	OMRON or Mitsubishi
Motor Driver	Swiss ABB (the world's leading brand)
Relay	IDEC (Izumi Electric))
Vacuum gauge	Panasonic
Vacuum electromagnetic valve	304 Normally Open Type
Switching power supply	MW (Minwe)
Vacuum pump	AKS Two-Stage Pump SD-240 (>4L/sec, >240L/min, 14–16 m²/hour) Absolute ultimate pressure (partial pressure: 5×10⁻² Pa or 0.05 Pa) Absolute ultimate pressure (total pressure: 4×10⁻¹ Pa or 0.4 Pa) Maximum relative vacuum displayed on machine: -100.2 kPa
Spiral bevel gears, helical gears	TMAX custom MC901 or oil-filled nylon
Swing arm	TMAX 7075 aluminum plate complete processing

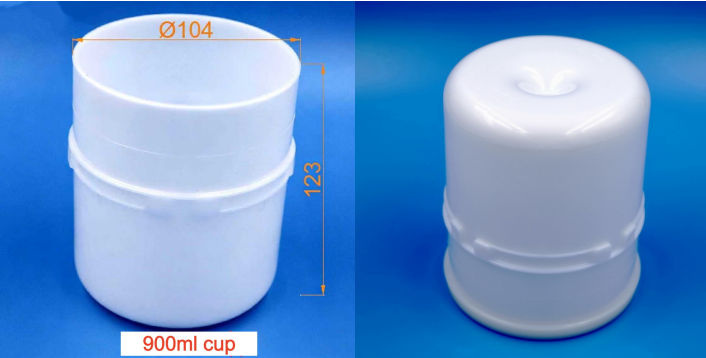

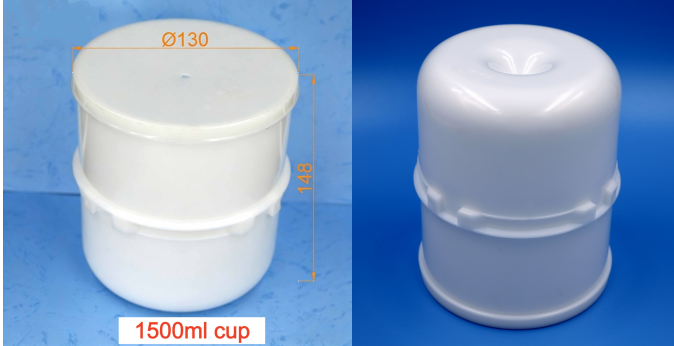

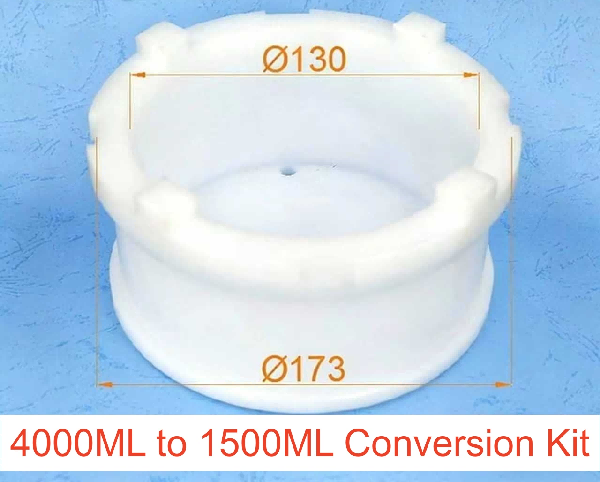

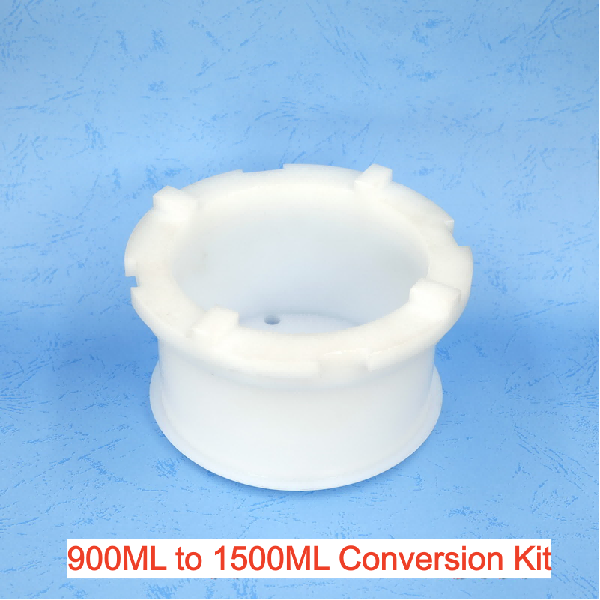

Mixing cup	TMAX 4000ML 1500ML 900ML
Rotation shaft	TMAX Yishengbai S136 mirror surface mold steel
Rotation sealing ring	TMAX Custom Bayer polytetrafluoroethylene graphite sealing ring
