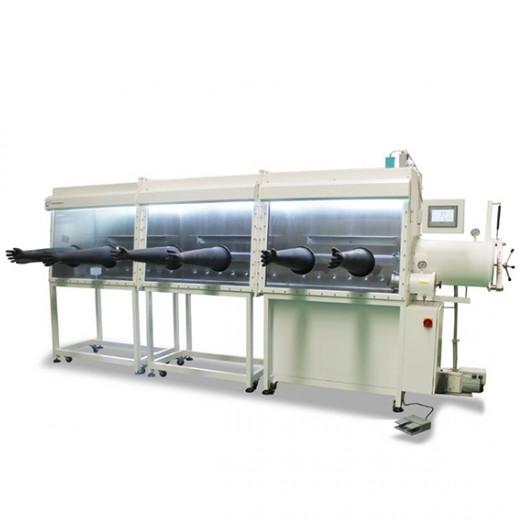

3 Working Station Laboratory Glove Box With Gas Purification System

TMAX-3working is a dual stainless steel lab glove box designed for researchers in material science, chemistry, semiconductor, and related topics. The purification cylinder is made of BASF antioxidant materials from Germany and UOP water adsorbent materials from the US in order to achieve a low water and oxygen concentration of lower than 1ppm, such that experiments can be conducted in an ultra clean and highly purified gas environment. It is integrated with vapor pressure control system, purity control system, automatic gas purity regeneration control system, auto alarm, and system data log recording. TMAX-3working is widely used in preparing nanomaterials, Li-ion battery materials, catalysts, and metallorganics.

SPECIFICATIONS:

Working Voltage	AC 110 - 240 V 50/60 Hz
Max. Power Consumption	3KW
Glove Box Chamber	Dimensions: 3660mm(L) x 750mm(W) x 900mm(H) Case Material: Stainless Steel 304 12mm thick double layer laminated safety glass with corrosion protection film for operating in a safe and easy manner. <0.05 Vol% / hr (Depending on oxygen concentration inside the glove box) Built-in fluorescent lamp Three slidable shelves, 300mm L x 250mm W x 300mm H
Airlock Chamber	Antechamber Dimensions: 360mm(Dia.) x 600mm(L) Small Chamber Dimensions (for tools): 150mm(Dia.) x 300mm(L) Max. vacuum level: 100 Pa
Two Transparent Front Panels	1.Front Panel made of transparent plastic  2.Each Panel Dimension: 1170 mm(L) x 700mm(W) 3.Removable for putting in devices
Attainable purity level	1.Water concentration: <1 ppm (20°C, 1 atm) 2.Oxygen concentration: <1 ppm (20°C, 1 atm)
Working Gas	1.Operating gas: Inert gas such as N2, Ar, He 2.Regenerating gas: Mixture of H2 (5%) and Operating gas
Gas Purification System	Auto regeneration process Auto purging function Purification Cylinder: made of BASF antioxidant materials and UOP water adsorbent materials Moisture removal capacity: 1.3KG Oxygen removal capacity: 30L Stainless steel pipe connection Blower: Flow Rate: 8m³/h
Filter System	1.One Organic Solvent Filter System filled with replaceable activated carbon (5.2kg) 2.Two pieces of HEPA filters can eliminate particle size > 0.3μm
Control system	PLC control system with 6" touchscreen display Water concentration: 0 - 1000 ppm @0.1 ppm  Oxygen concentration: 0 - 1000 ppm @0.1 ppm Auto pressure control -12 to 12 mbar @0.1mbar
Feedthroughs	Can be 110VAC or 220VAC depending on the input source
Vacuum pump	Vacuum rate: 4.7 cfm Lowest pressure: 0.4pa
Compliance	CE Certified
Warranty	One years limited warranty with lifetime technical support
Application Notes & Warnings	1.The interconnections between the glove box chamber and the gas purification system must be unimpeded during the purification cycles.  2.The use of corrosive gases is prohibited as they will damage the water sensors. 3.Regularly perform regeneration to maintain the optimum purification efficiency.  4.The H2O removing rate is largely dependent on the type of purging gas used. For faster chamber purging process, Nitrogen is preferred over Argon due to its lighter mass.  5.Corrosive liquid (such as LiPF6 electrolyte) must be remain sealed in a container inside the glove box. Otherwise, liquid vapour may condense and corrode the steel chamber and purification pipeline.

Specifications of Standard Model of Purification Glove Box
No.	Model No.	Box Dimensions	Total Dimensions	Operating Sides	Numbers of Gloves	Options
1	GBP800S-2	1200*800*930mm	1915*830*1830mm	Single	2	Single or double purification columns
2	GBP1000S-4	1200*1000*930mm	1915*1060*1830mm	Single	4	Single or double purification columns
3	GBP1000D-4	1200*1000*930mm	1915*1060*1830mm	Double	4	Single or double purification columns
4	GBP1200S-2	1200*1200*930mm	1915*1260*1830mm	Single	2	Single or double purification columns
5	GBP1200D-4	1200*1200*930mm	1915*1260*1830mm	Double	4	Single or double purification columns
6	GBP800S-3	1500*800*930mm	2215*1060*1830mm	Single	3	Single or double purification columns
7	GBP1000S-3	1500*1000*930mm	2215*1060*1830mm	Single	3	Single or double purification columns
8	GBP1000D-6	1500*1000*930mm	2215*1060*1830mm	Double	6	Single or double purification columns
9	GBP1200S-3	1500*1200*930mm	2215*1260*1830mm	Single	3	Single or double purification columns
10	GBP1200D-6	1500*1200*930mm	2215*1260*1830mm	Double	6	Single or double purification columns
11	GBP800S-4	1900*800*930mm	2615*1060*1830mm	Single	4	Single or double purification columns
12	GBP1000S-4	1900*1000*930mm	2615*1060*1830mm	Single	4	Single or double purification columns
13	GBP1000D-8	1900*1000*930mm	2615*1060*1830mm	Double	8	Single or double purification columns
14	GBP1200S-4	1900*1200*930mm	2615*1260*1830mm	Single	4	Single or double purification columns
15	GBP1200D-8	1900*1200*930mm	2615*1260*1830mm	Double	8	Single or double purification columns

Notes： Cabinet water and oxygen content under the standard condition:   Water content ≤1ppm, oxygen content≤1 ppm (Note: Standard condition is that an atmospheric pressure, constant temperature of 20 degree). Leakage Rate: ≤0.05Vol%/ h (subject to change value of oxygen content in box) Used Gases a) Working Gas: N2、Ar、He and etc. b) Controlling Gas: Compressed air or Inert Gas. C) Restoring Gas: Mixed gas of working gas and hydrogen. Restoring gas is as same as working gas if there is only water removal system or oxygen removal system. Remarks: All Single side boxes of 4 gloves are assembled glove box. Numbers of assembled box can be ordered as per customer’s needs. Quantity of purification columns is also designed to be matched according to customer’s requirements





1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
