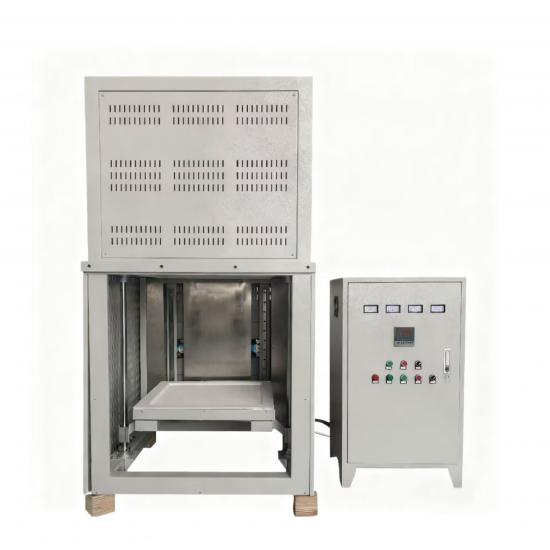

Main parameter

PN: SL2-17TP

Max.design Temp:1700C

Working temperature:0-1550C

Chamber size:D500*W500*H500mm(125L)

Voltage:380V 3 phase

Heating rate:0~10Degree/Min,suggestion0-5C/min

Heating element:Mosi2 heating element(four sides heating)

Thermocouple：B type

Power:about 45kw(subject to design)

Temperature accuracy: ±1℃

External dimensions:

D1100*W1000*H1800MM

D600*W800*H1500MM

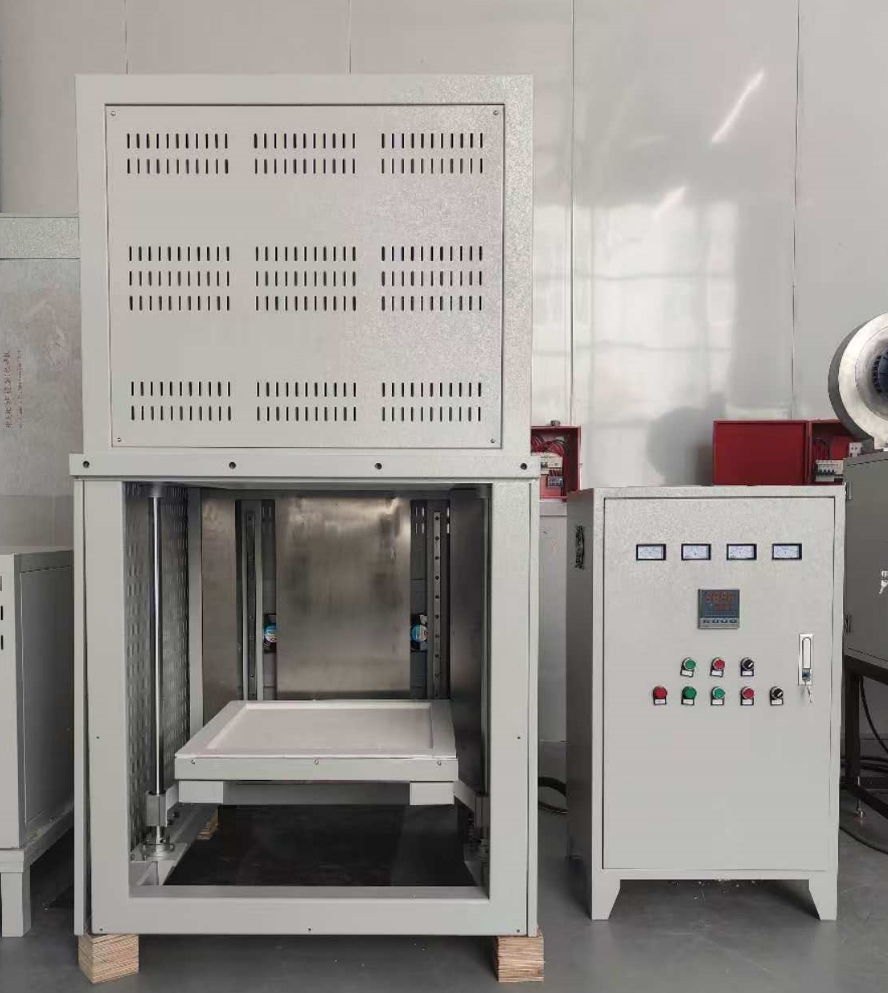

Loading way

Bottom loading,Electric button lift

Appearance design

The electric furnace adopts humanized design, beautiful and easy to operate, and the outer layer of paint is sprayed with high temperature baking technology. High temperature resistance, oxidation resistance, acid and alkali resistance. Color selection is aging resistant tone, will not cause the appearance color fade due to a long time of use.

Furnace Chamber material

Adopt the advanced light alumina ceramic fiber, with excellent thermal insulation effect, light weight, high temperature resistance. The energy saving effect is 60-80% of the old electric furnace.

 Furnace chamber design

Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.

Furnace shell  structure

Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

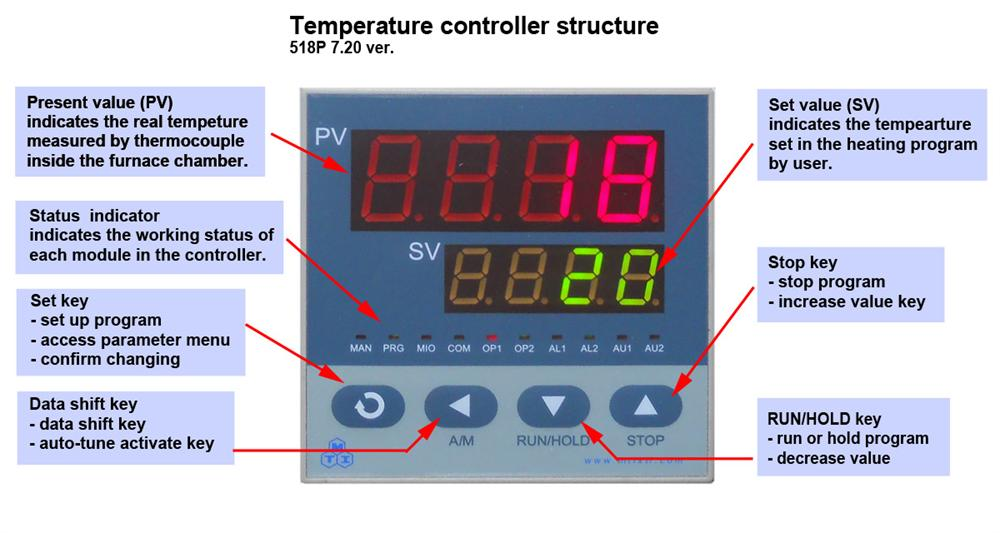

Temperature controlling

Independent control cabinet,Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.

Temperature control security

The electric furnace adopts integrated circuit, module control, double circuit protection (ultra-high temperature protection, coupling protection, overcurrent protections) to make the electric furnace work stable and reliable, safe.

Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Standard Package Accessories:

Electric Furnace

1 set

High temperature gloves

1 pair

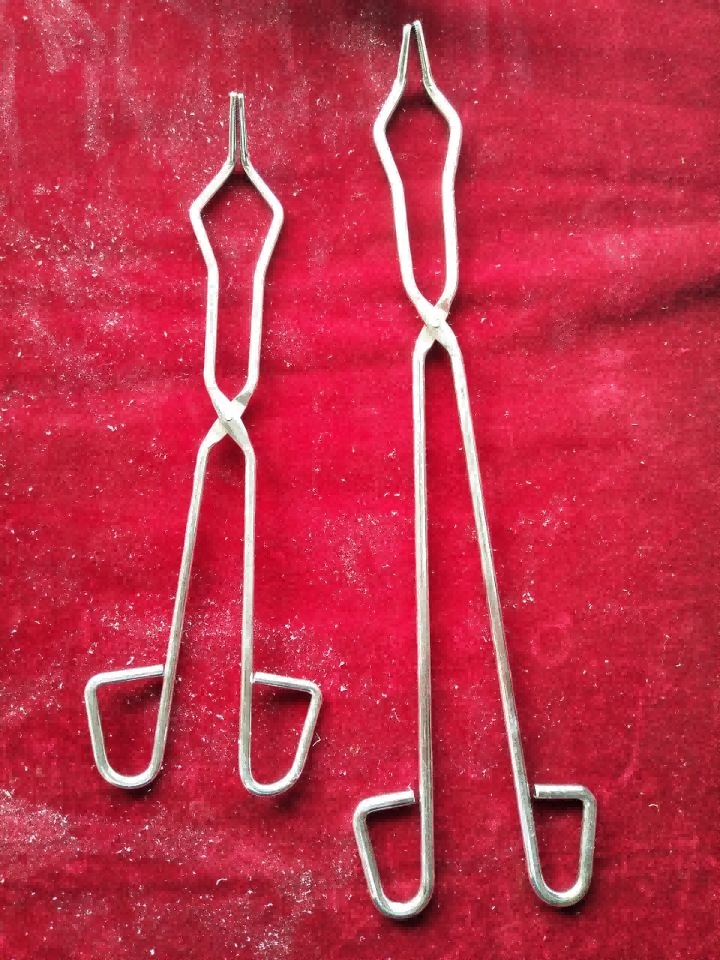

Crucible clip

1 pc

Independent control cabinet

1set

Spare heating element

2pc

User manual

1 book
