1600℃ Microwave Reaction and Sintering Experimental Furnace

I. Product Overview

The HY-QS6016 microwave reaction-sintering experimental workstation is a newly developed multi-functional experimental platform by Huayi Microwave. It is an integrated experimental workstation combining microwave reaction equipment, microwave atmosphere sintering equipment, and cooling device, suitable for liquid-phase low-temperature reactions, gas-solid phase high-temperature sintering, etc.

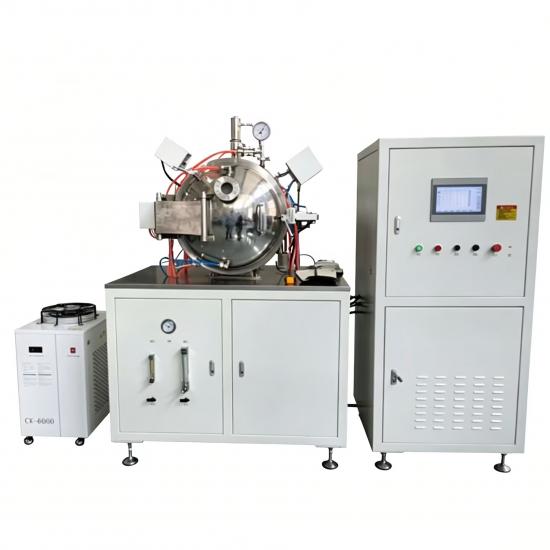

II. Product Images

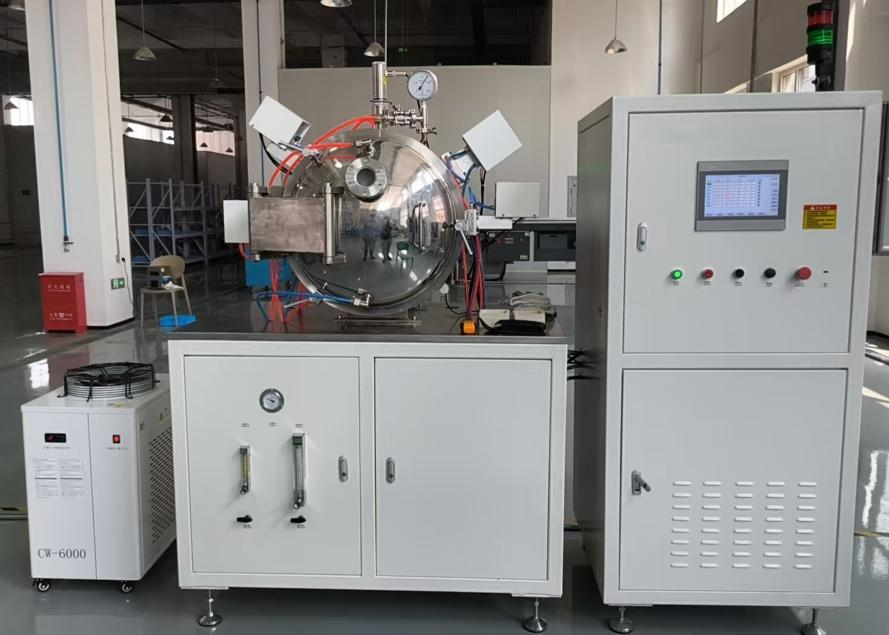

(Physical images of the same model of equipment provided to a certain university for reference)

III. Main Technical Parameters of the Equipment:

Voltage	380 ± 10V, 50Hz
Rated Power	9 kW
Microwave Output Power	0.1–5.6 kW; industrial-grade, internationally branded customized water-cooled microwave generator; steplessly adjustable; stable output with fluctuation range of 0.1–0.5 W
Microwave Frequency	2.45 GHz
Maximum Temperature	1600°C
Working Temperature	1550°C
Rotating Heating Chamber Size	Φ180 × 150 mm (diameter × height)
Temperature Measurement Method	Infrared pyrometer; IP65 protection rating; distancetospot ratio (optical resolution) up to 300:1 Communication Interface:RS485; mounting interface: R875
Temperature Measurement Range	300–1800°C
Temperature Control Accuracy	±0.1% of reading
Insulation System	High-purity solidified polycrystalline fiber customized HTF1800 module, density 0.6 g/cm³ (±0.05 g/cm³); detachable microwaveassisted heating module and absorbent material custom sagger
Automatic, Manual, Constant Temperature Mode / PLC + Touch Screen	Internationally branded PLC with high-definition touchscreen; automatic, manual, and constanttemperature modes; multiple process recipes can be set; large-capacity data storage with USB port for data export; real-time curve display; online alarm; selfdeveloped control software with onetouch oven setting; expandable functions including remote control and alarm, as well as customization as required
Ultimate Static Vacuum Level	≤ 100 Pa
Vacuum unit, two-way atmosphere control pipeline	Rapid pre-evacuation; supports oxidizing, inert, and mildly reducing gases
Rotary Seal	Rotation speed: 4–6 rpm; magnetic fluid seal
Microwave Leakage Protection	Choke-door type microwave shield, easy to replace; anti-arcing design; equipped with attenuation materials to absorb residual microwave radiation; microwave leakage level < 1 mW/cm²
Magnetron Alarm	Overtemperature alarm, overcurrent alarm
Furnace Door Protection Alarm	Doorclosed safety interlock switch
Cooling Water Alarm	Flow alarm

IV. Configuration List

1. Microwave sintering device configuration list:

No.	Item	Technical Parameters & Requirements	Qty	Remarks
1	Main Furnace Body	Double-layer water-cooled stainless steel furnace body; inside temperature up to 1600°C, outside temperature < 40°C	1 set	—
2	Outer Frame	Steel structure with powder coating, fully integrated	1 set	—
3	Microwave Source System	Industrial-grade 1.5kW continuously adjustable magnetron (Panasonic), with switching power supply (Megmeet)	4 sets	Includes Megmeet power supply
4	Control System	PLC control, including 10-inch touchscreen, voltage regulator module, contactors, relays, etc. (brands: Schneider, Honeywell, etc.)	1 set	PLC: Mitsubishi (international brand); Touchscreen: Kunlun Tongtai
5	Insulation Material	1800°C molded modules	2 sets	Entire insulation system uses imported microwave-specific insulation materials
6	Refractory Material	4 crucibles (material: corundum); 2 pieces of microwave-assisted heating material for crucibles	1 set	—
7	Infrared Pyrometer	300–1800°C	1 pc
8	Vacuum Pump	Rotary vane vacuum pump, pumping speed ≥ 4 L/s	1 unit	—
9	Vacuum Valves	Automatically controlled electric highvacuum valves	3 units	—
10	Vacuum Accessories	Including bellows, filter tank, vacuum gauge, gauge head, etc.	1 set	—
11	Atmosphere System	Flow meter, pressure gauge, copper connecting tubes	1 set	—
12	Cooling Water System	Main furnace body cooling, flange cooling, microwave inlet cooling, water pressure gauge, piping, etc.	1 set	—
13	Microwave Leak Detector	Measuring range: 0–9.99 mW/cm²	1 unit	—
14	Microwave Inlet Blank Plate	≥ 49.292 × 434 mm (highpurity quartz)	2 pcs	—
15	Alarm & Detection Devices	Furnace door open alarm, magnetron overtemperature alarm, cooling water flow alarm, magnetron overcurrent alarm	1 set	—
16	Furnace Door Vacuum Seal & Microwave Shielding	High-precision flange with full-contact shielding	1 set	—
17	USB Data Interface	Located on the exterior of the equipment	1 pc	—
18	Power Cable	380V, 3m	1 set	—
19	Power Switch	Integrated assembly	1 set	—
