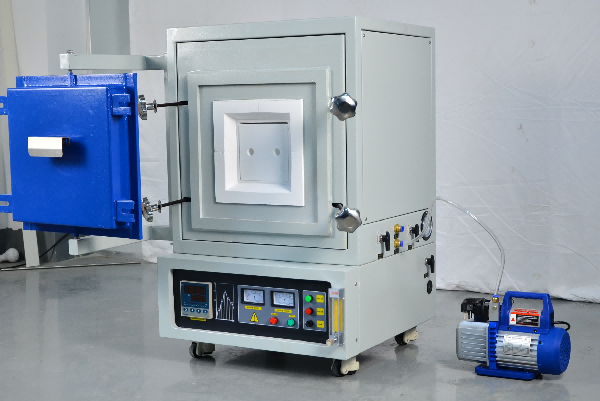

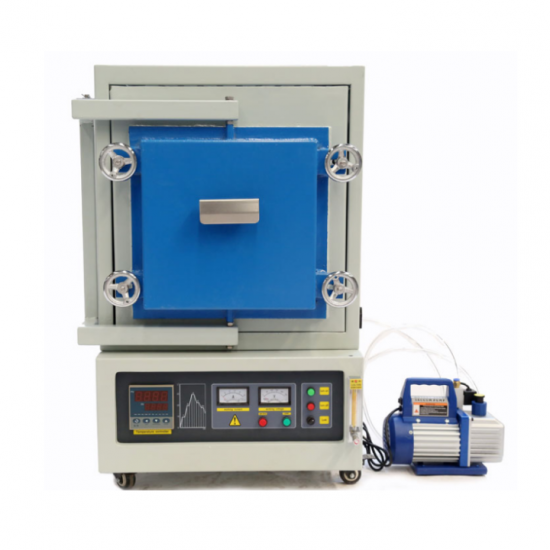

Main parameter

PN: SA2-9-12TP,

Max.Temp:1200C

Working temperature:0-1100C

Chamber size:D400*W300*H300mm

Power:9KW

Heating rate:0~20 Degree/Min

Voltage 380V,3 phase 50/60HZ

Heating element:Resistance wire

Thermocouple:K type

Temperature accuracy: ±1℃

Max.vacuum:-0.1Mpa

Exhaust system

An additional high-temperature exhaust vent is added, allowing direct exhaust from the furnace. The exhaust pipe is connected to the condenser to prevent excessively high gas temperatures from damaging the seal.

Inlet gas/Atmosphere

It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc

The maximum positive pressure of gas in the furnace does not exceed 0.02mpa

Gas control

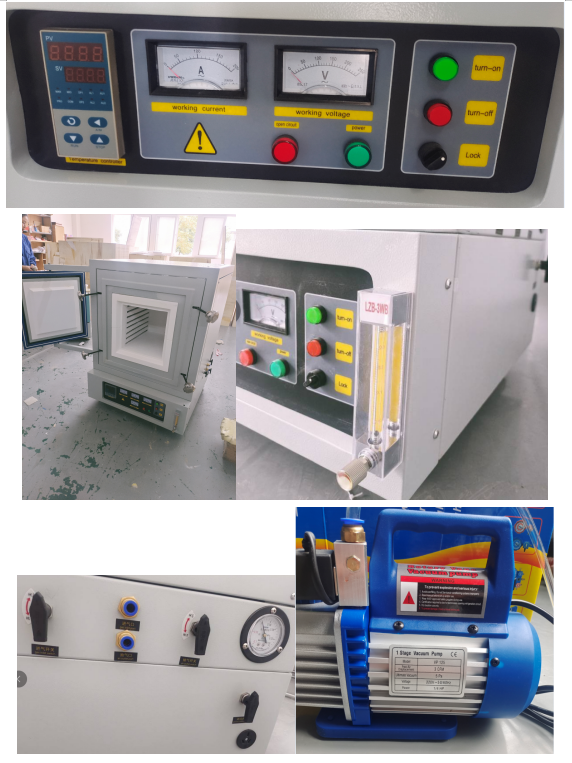

The air inlet set up 1 air intakes, each air inlet is provided with a ball valve, connected with a pressure gauge. The vacuum port is connected with vacuum pump, and all holes are equipped with ball valves. Equipped with a float flowmeter.

Furnace Chamber material

Adopt the advanced light alumina ceramic fiber, with excellent thermal insulation effect, light weight, high temperature resistance, The energy saving effect is 60-80% of the old electric furnace.

 Furnace chamber design

Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.

Furnace shell  structure

Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

Sealing way

Furnace door adopts integral plane milling, silica gel strip embedded seal, with strong sealing, easy to open and close furnace door

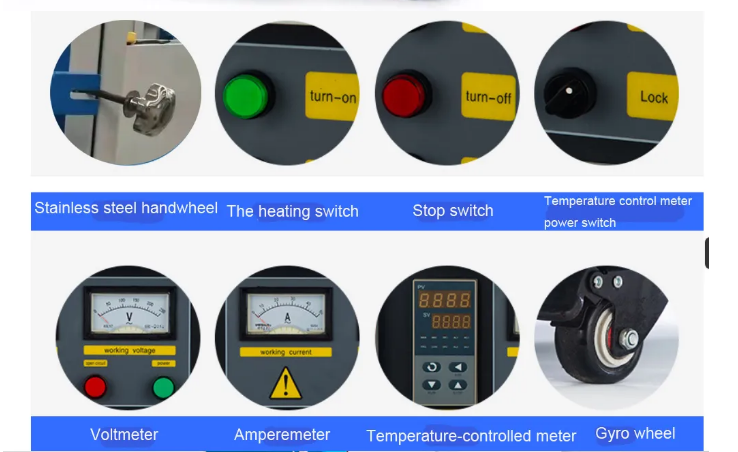

Temperature controlling

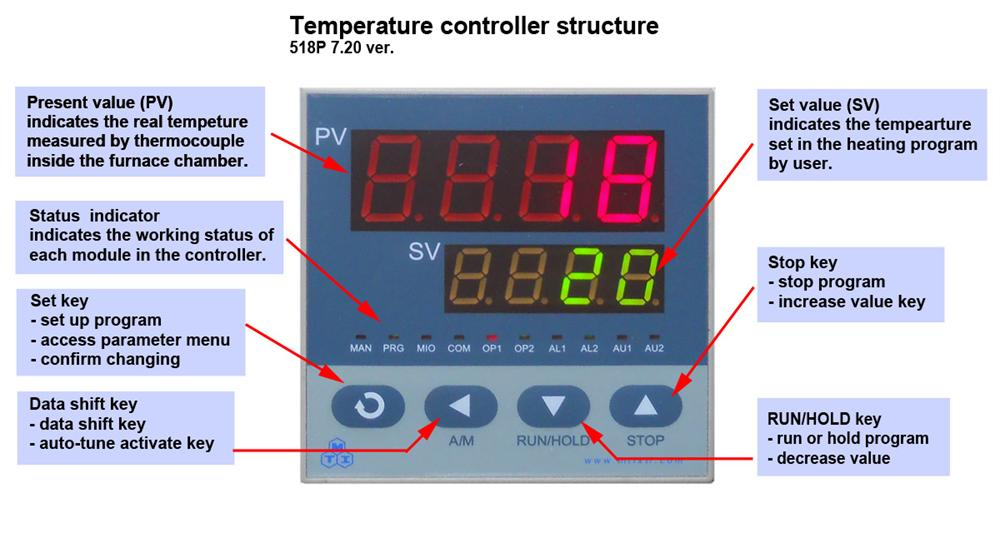

Adopt international advanced yudian 518P temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.

Temperature control security

The electric furnace adopts integrated circuit, module control, double circuit protection (ultra-high temperature protection, coupling protection, overcurrent protection,and other protection functions) to make the electric furnace work stable and reliable, safe.

Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Standard Package Accessories:

Electric Furnace

1 set

High temperature gloves

1 pair

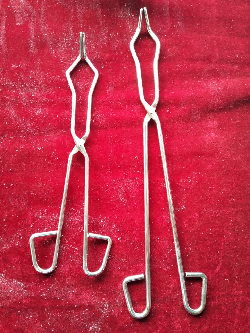

Crucible clip

1 pc

User manual

1 book

Door block

1 pc

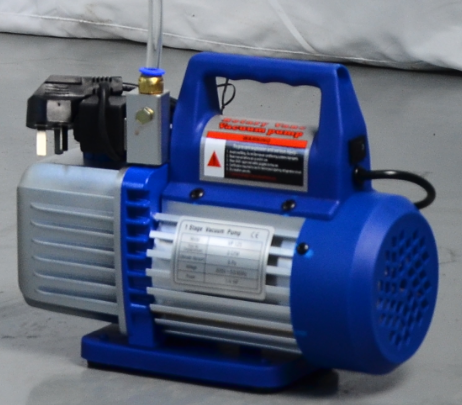

Vacuum pump

1 set
