100W Laser Cleaning Machine or Rust Removal Machine

100W Laser Cleaning Machine or Rust Removal Machine

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-OV-Q100
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

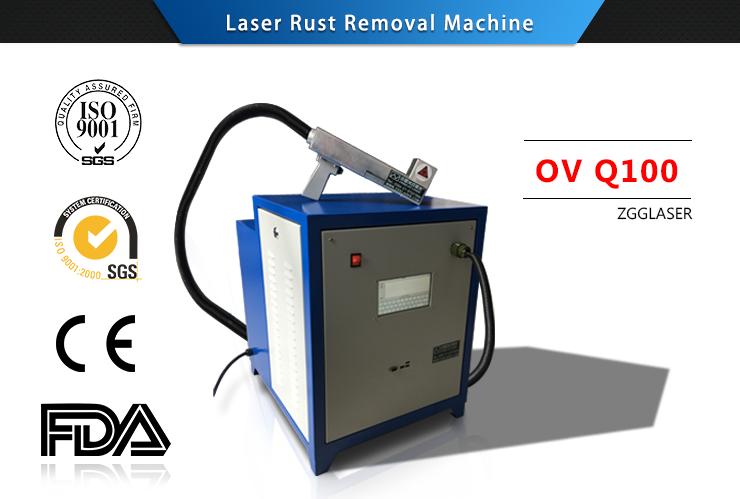

100W Laser Cleaning Machine or Rust Removal Machine




Product Description

Laser cleaning is universally acknowledged as the most reliable and effective solution for all materials with features of non-contact, no grind and no heat effect.

1.Laser power from 50--500W for different laser cleaning application.
2.High efficient clean speed of 3m2~40m2/h.
3.Accurate cleaning for exact position and precise size.
4.Widely applied in flat,curved and three-dimensional surface for work piece of elastic material and plastic with very small and deep holes.
5.Flexible operation for work pieces with complicated geometric construction can be realized by mechanized or hand-held laser cleaning head.
6.No maintenance and no consumables.
7.Dust-free,no chemicals,no pollution.
8.Non-contact cleaning and no damage for substrate.
9.Extremely low cleaning cost and High cleaning efficiency.



Laser cleaning machine laser rust removal machine100W for rust remove

Introduction:

Wuhan Optical Valley Laser Equipments Co.,Ltd. develops a new OV-Q series hand-held laser derusting machine,using 50--1000W laser to burn rust and paint on metal surface.
*As metals have high reflection,laser pulse is extremely fast and stays on metal surface for very short time to avoid damaging the surface.
*On the other hand,the metal rust will be vaporized under laser beams and substrate metals surface will reflect laser beam so that it will not be damaged.Even the letters and bolts will beperfectly cleaned.
*The working principle for laser cleaning machine (laser derusting machine) is that contaminant on base materials absorb laser energy and vaporized to realize cleaning.

*OV Laser systems offers new and innovative laser ablation technology for industrial surface treatment, cleaning and paint removal.

*The laser technology integral to these new laser-cleaning systems helps remove contaminants, production residue and coatings without damaging the substrate.

*The laser cleaning systems combine power and versatility with the lowest operating cost of all industrial cleaning methods.

*We offers innovative laser ablation technology for industrial surface treatment, cleaning, paint removal and cutting applications.

*Our laser technology removes contaminants, production residue and coatings without damaging the substrate.


Laser Cleaning Advantages:

Cleaning with laser has gained so much interest because of the amount of advantages compared to traditional cleaning methods:
1.The most popular methods of industrial cleaning known today are Chemical, Thermochemical, Thermal, Grinding and Blasting.
2.In many cases, laser cleaning can overcome the downsides of these traditional methods and even improve the production process in general.
3. For every application where laser cleaning is used to replace older techniques, unforeseen advantages came up.

It is impossible to list everything, but these are the most common advantages of laser cleaning:
1.No medium used, only electricity
2.Base material is not damaged
3.Higher levels of 'clean' can be reached
4.Easy to integrate in a production line
5.No chemical waste
6.Local cleaning is possible
7.Low noise, no dust
8.Stable process
9.Low running costs
10.Lower sensitivity to corrosion after cleaning


Sample show



Laser cleaning machine laser rust removal machine100W for rust remove

Technical support

 OV Q series  Laser Rust Removal Machine Tech data:

Model OV Q100 OV Q200 OV Q500
Laser power 100W 200W 500W
Machine weight 50KG 150KG 200KG
Laser gun weight 1.5KG 1.5KG 1.8KG
Working mode Manual or auto
Cable length 3 Mtrs (can be lengthened)
Working distance 150mm / 250mm / 500mm
Laser wavelenght 1.064μm
Power supply 220V / 50Hz / 2A or 380V / 50Hz / 2A
Work temperature 5℃~45℃
Work humidity <90%
Laser class IV



Application industry:



Removal for rust ,oil stain,grease,dirt,resin,mold release,oil paint coating,weld residue,oxide,production residue,etc.

1 . Space flight and aviation / ships

2 . Automobile / machine manufacturing

3 . Mould / hardware tool

4 . Food processing

5. Chemical industry

6 . Rubber and plastic / tyre

7 . Electronics / electrical

8 . Equipment

9 . Weaponry

10 . Building materials/cultural relic

11 . Steel structural parts

12 . Rail transit / machine tool,etc.









 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
