1 to 20L Lab Scale Lightweight Vibration Ball Mill for Uniform Grinding of Materials

Structural Principle

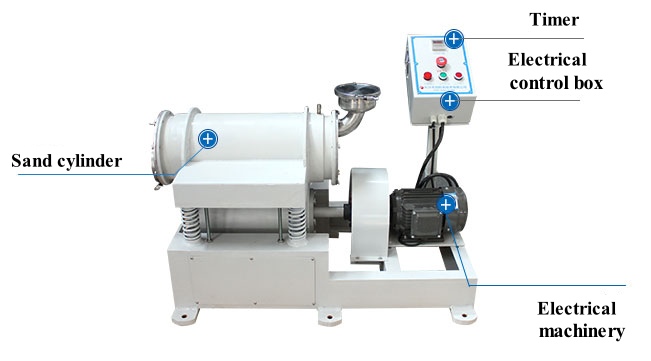

The lightweight vibration ball mill is mainly composed of the frame, base frame, exciter, grinding cylinder, springs, motor, etc. When the machine is started, the motor drives the exciter to generate excitation force, causing the grinding cylinder to perform high-frequency and small-amplitude continuous vibration. Due to the rotation and relative movement of the grinding media, which causes frequent impacts and grinding abrasions on the materials, the purpose of uniform material grinding is achieved.

Structural Principle

The lightweight vibration ball mill is mainly composed of the frame, base frame, exciter, grinding cylinder, springs, motor, etc. When the machine is started, the motor drives the exciter to generate excitation force, causing the grinding cylinder to perform high-frequency and small-amplitude continuous vibration. Due to the rotation and relative movement of the grinding media, which causes frequent impacts and abrasion on the materials, the purpose of uniform grinding of the materials is achieved.

Product features

1. The filling volume of the medium in the grinding cylinder is higher than that of the ball mill of the same capacity, reaching 80%. Therefore, the processing capacity is large.

2. The structure is simple. By adjusting the amplitude, frequency, medium, and ratio, different particle sizes of products can be produced.

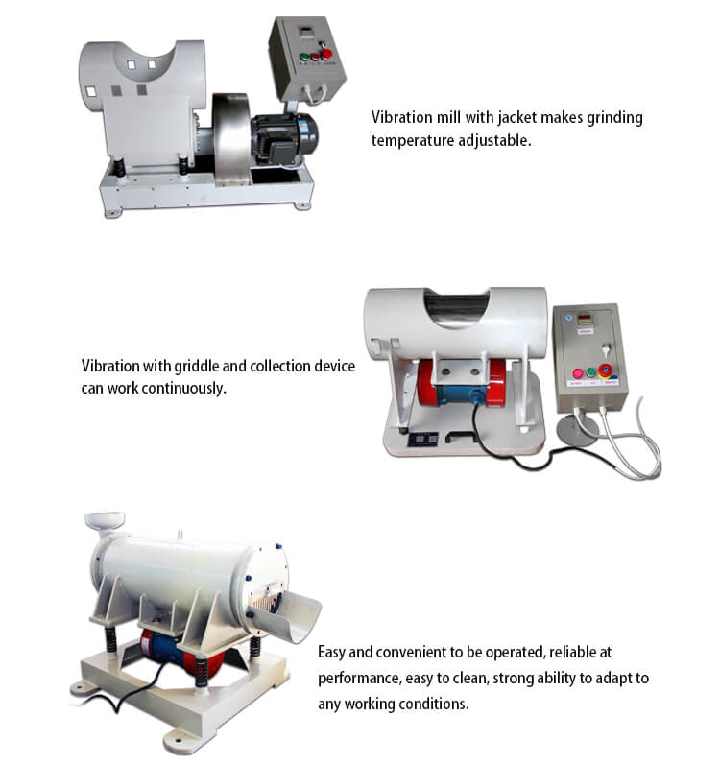

3. The vibrating mill with a jacketed grinding cylinder can regulate the grinding temperature.

4. The vibrating mill with a screen and collection device can carry out continuous production.

5. The operation is simple and convenient, the working reliability is high, it is easy to clean, and it has strong adaptability to working conditions.

6. It can be used for dry or wet ball milling.

7. It is lightweight, small in size, and has high efficiency.

8. Special customization can be carried out according to requirements.

Product Parameter

Model	Volume (L)	Charge amount	Motor power（kw）	Material of grinding cylinder	Feed particle size (mm)	Discharging granularity (mesh)	Remark	Input power
TMAX-ZM-1L	1	25%	1.1	General conventional drum tank	≤5	200-2000 (related to material properties)	Laboratory vibration	380V
TMAX-ZM-2L	2	25%	1.1
TMAX-ZM-3L	3	25%	1.1
TMAX-ZM-5L	5	25%	1.1
TMAX-ZM-10L	10	25%	1.5	Stainless steel, polyurethane, nylon, corundum, zirconia			Light vibration
TMAX-ZM-15L	15	25%	1.5
TMAX-ZM-20L	20	25%	1.5



Product picture

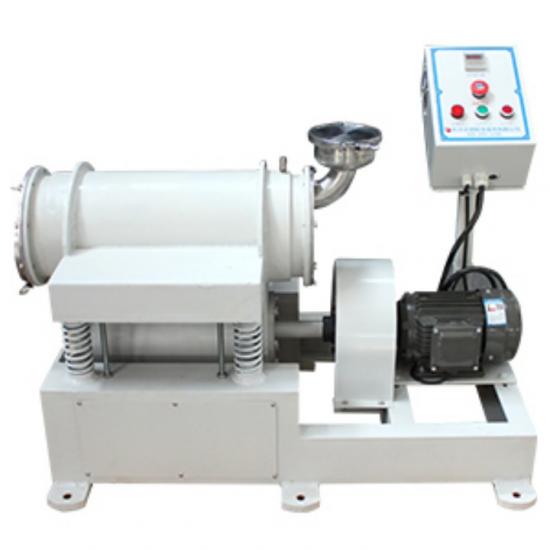

Lightweight Vibrating Mill TMAX-ZM-(1L-5L)

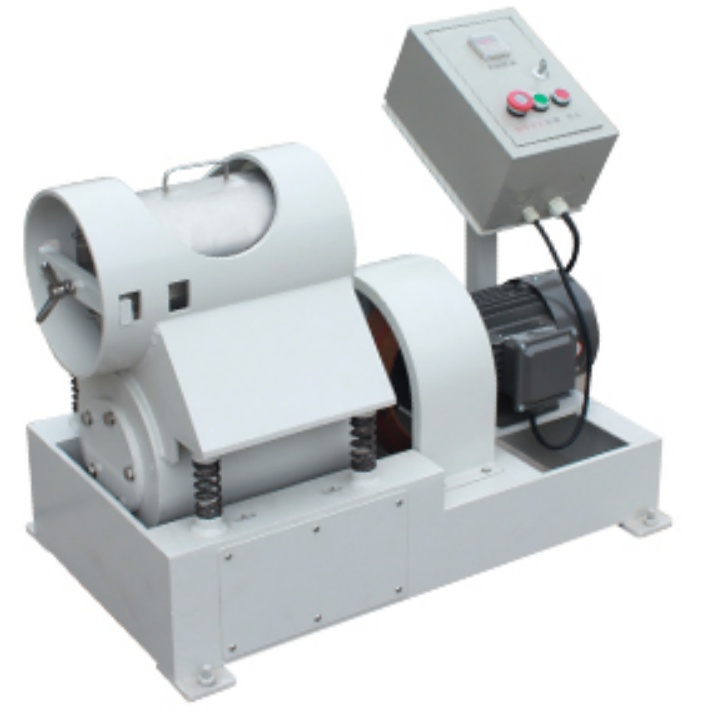

Laboratory Vibration Mill TMAX-ZM-(10L-20L)









1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
